Removal [10/2023 - ]: Procedure

  1. PRECAUTION
    WARNING:

    Be sure to read precaution thoroughly before servicing.

    Refer to PRECAUTION [10/2023 - ]

    GTY824211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [10/2023 - ]

  2. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 25

  3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 4

    WARNING:
    • Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
    • If the airbag deploys for any reason, it may cause a serious accident.
    GTY581108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE ROOF HEADLINING ASSEMBLY

    Refer to REMOVAL [10/2023 - ]

  5. REMOVE TELEPHONE AND GPS ANTENNA (ROOF ANTENNA ASSEMBLY)
    1. Disconnect the connector.
      GTY803272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

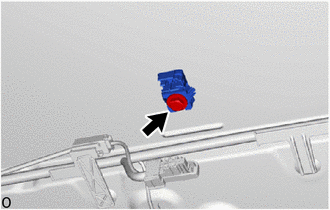

    2. Remove the bolt.
      GTY803271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the washer and holder as shown in the illustration.
      GTY823841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

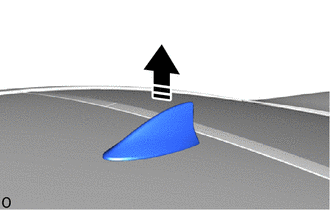

    4. Remove the telephone and GPS antenna (roof antenna assembly) as shown in the illustration.
      GTY803590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    5. Detach the claw and guide in the order shown in the illustration and remove the telephone and GPS antenna (roof antenna assembly).
      GTY838104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
    6. When reusing the telephone and GPS antenna (roof antenna assembly):
      GTY835470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the seal.
