Speaker Circuit [10/2020 - 11/2021]: Wiring Diagram

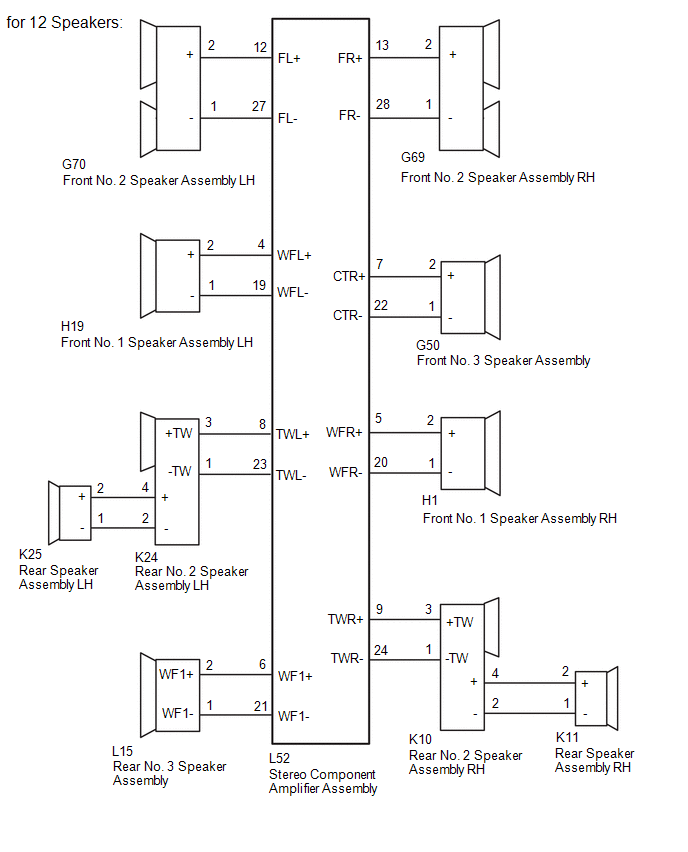

GTY971765

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

GTY971267

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

GTY837842

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
