Components [10/2017 - ]
Fig 1: Stereo Jack Adapter Assembly (For Rear) Replacement Components With Torque Specifications (1 Of 3)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY | *2 | NEGATIVE AUXILIARY BATTERY TERMINAL |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |

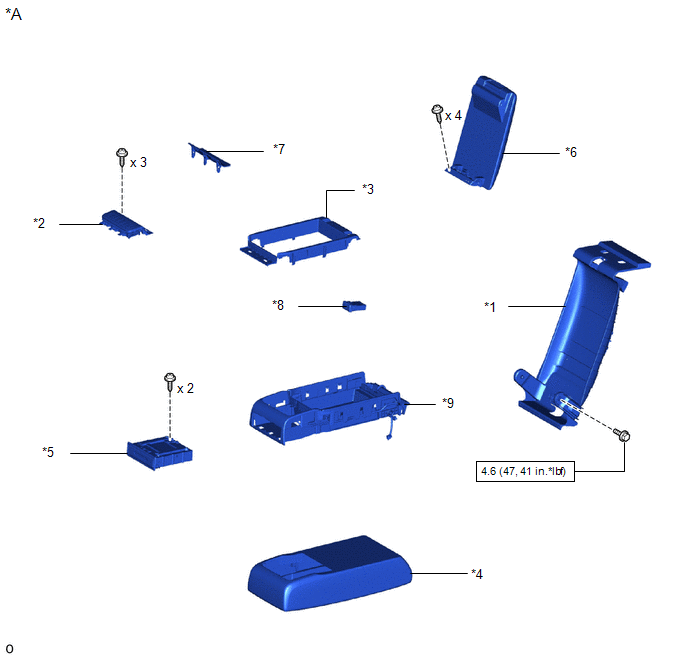

Fig 2: Stereo Jack Adapter Assembly (For Rear) Replacement Components With Torque Specifications (2 Of 3)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/o Rear Seat Entertainment System | - | - |
| *1 | CENTER ARMREST HINGE COVER | *2 | REAR CENTER NO. 2 SEAT ARMREST PANEL |
| *3 | REAR CENTER NO. 2 SEAT ARMREST PANEL SUB-ASSEMBLY | *4 | REAR CENTER SEAT ARMREST COVER SUB-ASSEMBLY |
| *5 | REAR CENTER SEAT ARMREST CUP HOLDER SUB-ASSEMBLY | *6 | REAR CENTER SEAT ARMREST DOOR SUB-ASSEMBLY |
| *7 | REAR CENTER SEAT ARMREST PANEL SUB-ASSEMBLY | *8 | USB CHARGER SOCKET |
| *9 | REAR CENTER SEAT ARMREST BOX | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

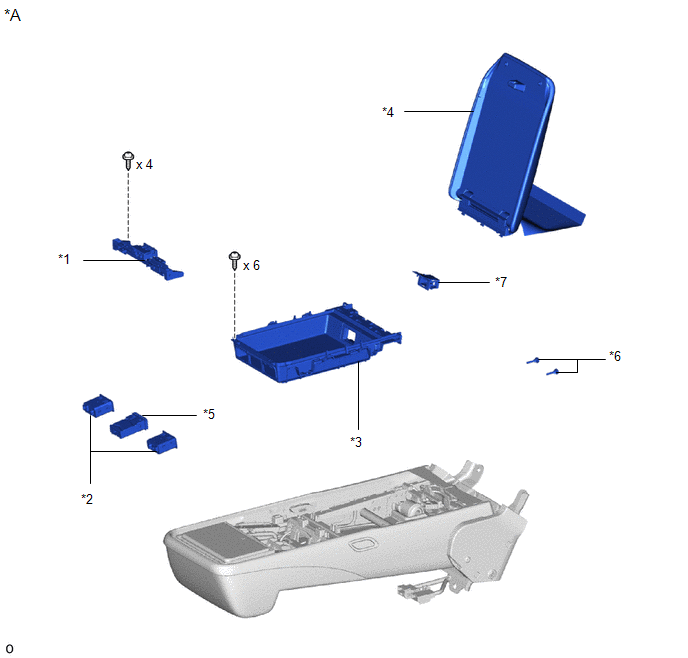

| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/ Rear Seat Entertainment System | - | - |
| *1 | CENTER ARMREST LOCK SUB-ASSEMBLY | *2 | HEADPHONE TERMINAL |
| *3 | REAR CENTER NO. 2 SEAT ARMREST BOX | *4 | REAR CENTER SEAT ARMREST DOOR SUB-ASSEMBLY |
| *5 | USB CHARGER SOCKET | *6 | CONSOLE COMPARTMENT DOOR HINGE SHAFT |
| *7 | HDMI CABLE COVER | - | - |
