DTC B15C3-71: Speaker Output Short Actuator Stuck [10/2022 - ]: Wiring Diagram

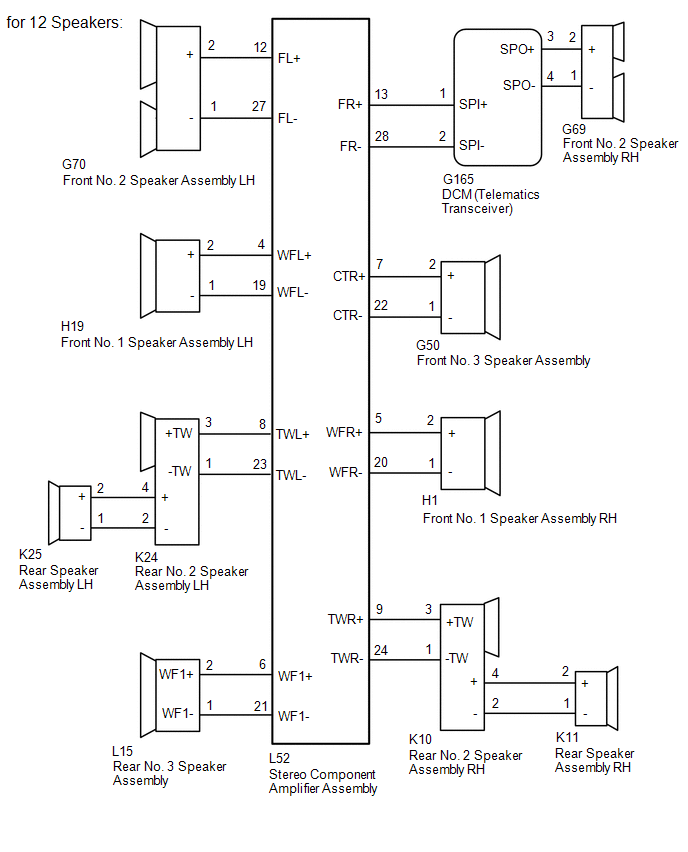

GTY970125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

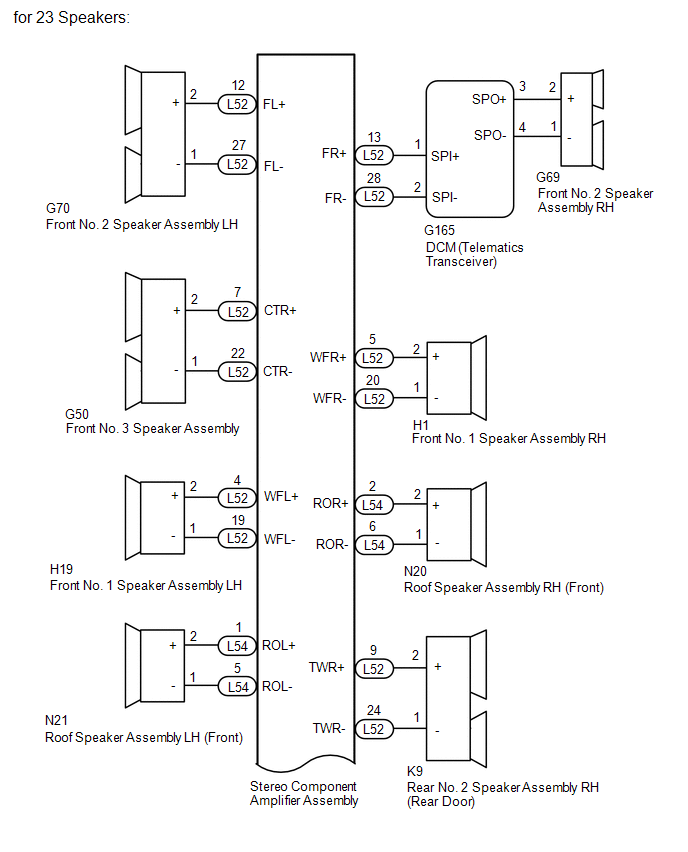

GTY970090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY823254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
