DTC B1535: NTSC Disconnected (from Park Assist/Monitoring ECU); DTC C1622: Back Camera Disconnected [10/2017 - 10/2020]: Procedure

1. Disconnect the L202 rear television camera assembly connector.
2. Disconnect the G51 multi-display connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   L202-6 (CB+) - G51-10 (CA+)	Always	Below 1 Ω
   L202-3 (CV+) - G51-8 (V+)	Always	Below 1 Ω
   L202-2 (CV-) - G51-9 (V-)	Always	Below 1 Ω
   L202-5 (CGND) - G51-21 (CGND)	Always	Below 1 Ω
   L202-6 (CB+) or G51-10 (CA+) - Body ground	Always	10 kΩ or higher
   L202-3 (CV+) or G51-8 (V+) - Body ground	Always	10 kΩ or higher
   L202-2 (CV-) or G51-9 (V-) - Body ground	Always	10 kΩ or higher
   L202-5 (CGND) or G51-21 (CGND) - Body ground	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  2

1. Remove the multi-display with the connector still connected.

   Refer to REMOVAL [10/2017 - 10/2020]

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Component with harness connected (Multi-display)

2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   G51-10 (CA+) - G51-21 (CGND)	Power switch on (ACC)	5.5 to 7.05 V

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   G51-21 (CGND) - Body ground	Always	Below 1 Ω

   Result

   Proceed to
   OK
   NG

Result:

NG

REPLACE MULTI-DISPLAY. Refer to  REMOVAL [10/2017 - 10/2020]

Result:

OK

See step  3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the multi-display with the connector still connected.

   Refer to REMOVAL [10/2017 - 10/2020]

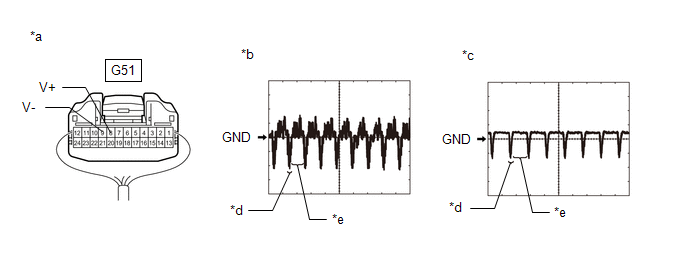

2. Check the waveform of the rear television camera assembly using an oscilloscope.

   Item	Content
   Measurement terminal	G51-8 (V+) - G51-9 (V-)
   Measurement setting	200 mV/DIV., 50 μsec./DIV.
   Condition	Waveform 1: Power switch on (READY), shift position in R, camera lens is not covered, displaying an image. Waveform 2: Power switch on (READY), shift position in R, camera lens is covered, blacking out the screen.

   HINT:

   • The video waveform changes according to the image sent by the rear television camera assembly.
   • The video waveform is constantly output when the power switch is on (ACC).

   OK

   Waveform is as shown in the illustration.

   Result

   Proceed to
   OK
   NG

Result:

NG

REPLACE REAR TELEVISION CAMERA ASSEMBLY. Refer to  REMOVAL [10/2017 - 10/2020]

Result:

OK

See step  4

1. Replace the multi-display with a new or known good one.

   Refer to REMOVAL [10/2017 - 10/2020]

2. Clear the DTCs.

   Refer to DTC CHECK / CLEAR [10/2017 - 10/2020]

   Body Electrical > Navigation System > Clear DTCs

3. Check for DTCs and check that no DTCs are output.

   Refer to DTC CHECK / CLEAR [10/2017 - 10/2020]

   Body Electrical > Navigation System > Trouble Codes

   Result

   Result	Proceed to
   DTC C1622 is not output	A
   DTC C1622 is output	B

Result:

A

END (MULTI-DISPLAY IS DEFECTIVE)

Result:

B

REPLACE RADIO RECEIVER ASSEMBLY. Refer to  REMOVAL [10/2017 - 10/2022]
