Parts Location [10/2020 - 10/2022]: Illustration

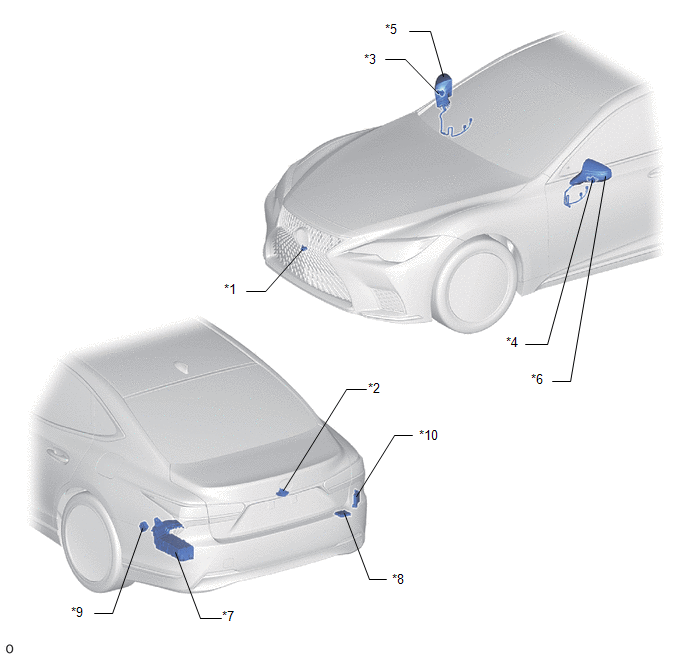

| *1 | FRONT TELEVISION CAMERA ASSEMBLY | *2 | REAR TELEVISION CAMERA ASSEMBLY |
| *3 | SIDE TELEVISION CAMERA ASSEMBLY RH | *4 | SIDE TELEVISION CAMERA ASSEMBLY LH |
| *5 | OUTER REAR VIEW MIRROR ASSEMBLY RH | *6 | OUTER REAR VIEW MIRROR ASSEMBLY LH |
| *7 | NO. 2 LUGGAGE ROOM RELAY BLOCK - LUG-ACC NO. 1 FUSE |
*8 | CLEARANCE WARNING ECU ASSEMBLY |
| *9 | NO. 3 SEMICONDUCTOR POWER INTEGRATION ECU | *10 | BLIND SPOT MONITOR SENSOR RH |
| *A | for Stereo Camera Type | - | - |

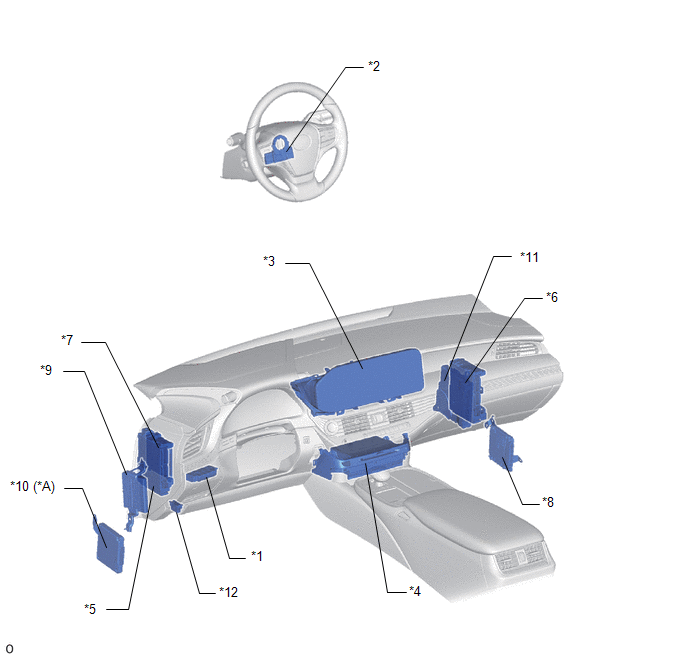

| *1 | PANORAMIC VIEW MONITOR MAIN SWITCH (INTEGRATION CONTROL AND PANEL ASSEMBLY) | *2 | STEERING SENSOR |
| *3 | MULTI-DISPLAY | *4 | RADIO RECEIVER ASSEMBLY |
| *5 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-B D NO. 2 FUSE - IG1 D NO. 3 FUSE |
*6 | PASSENGER SIDE JUNCTION BLOCK ASSEMBLY - ECU-B P NO. 5 FUSE - IG1 P NO. 2 FUSE - ACC P NO. 2 FUSE |
| *7 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *8 | PARKING ASSIST ECU |
| *9 | SKID CONTROL ECU ASSEMBLY | *10 | DRIVING SUPPORT ECU ASSEMBLY |
| *11 | HYBRID VEHICLE CONTROL ECU ASSEMBLY | *12 | DLC3 |
