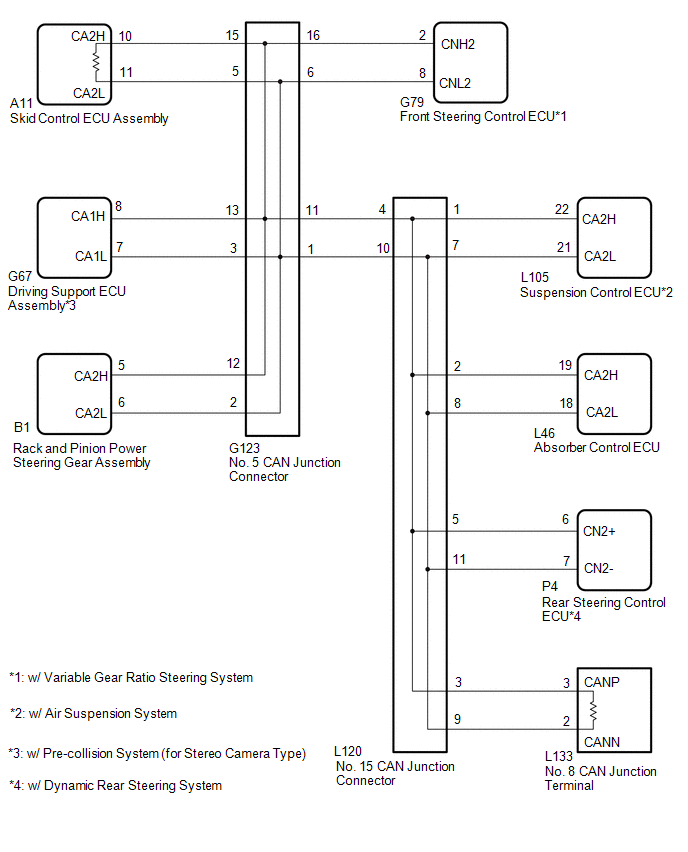

Check Chassis Local Bus Line for Short to GND [09/2018 - 10/2020]: Wiring Diagram

GTY811450

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
