Check Bus 5 Lines for Short Circuit [11/2021 - 10/2022]: Wiring Diagram

GTY969774

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

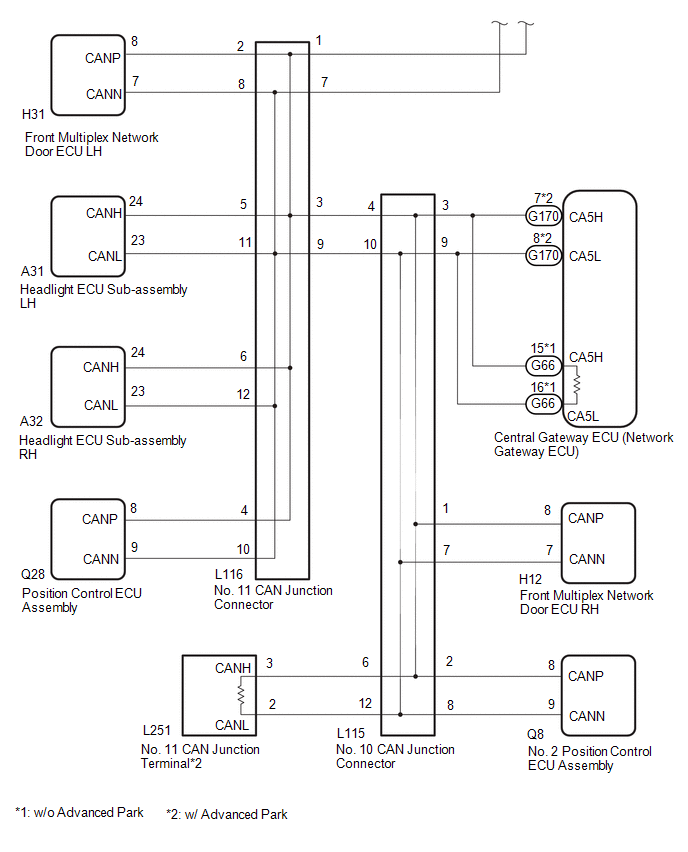

GTY1086972

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
