Check Bus 4 Line for Short to GND [10/2017 - 09/2018]: Wiring Diagram

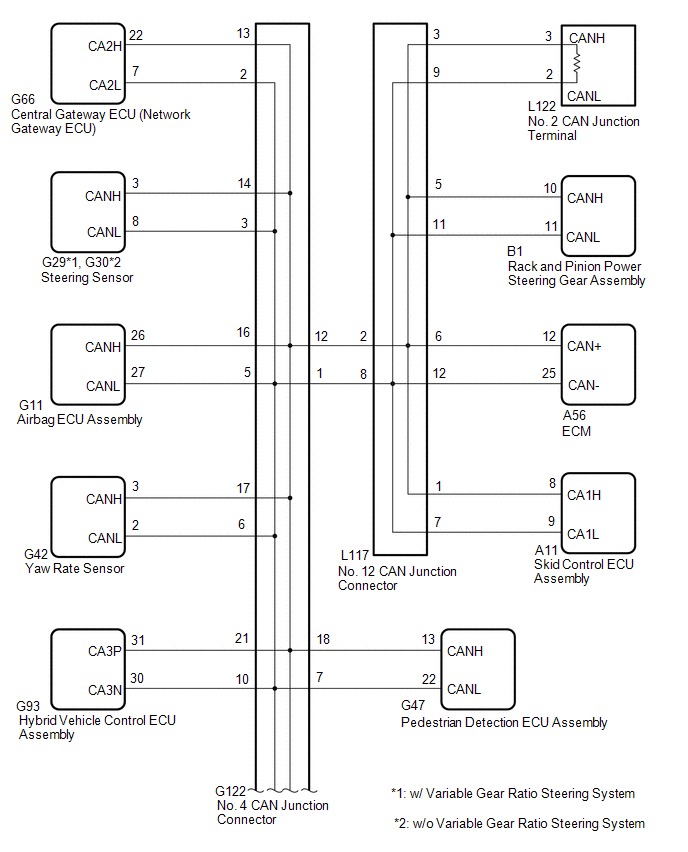

GTY805143

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

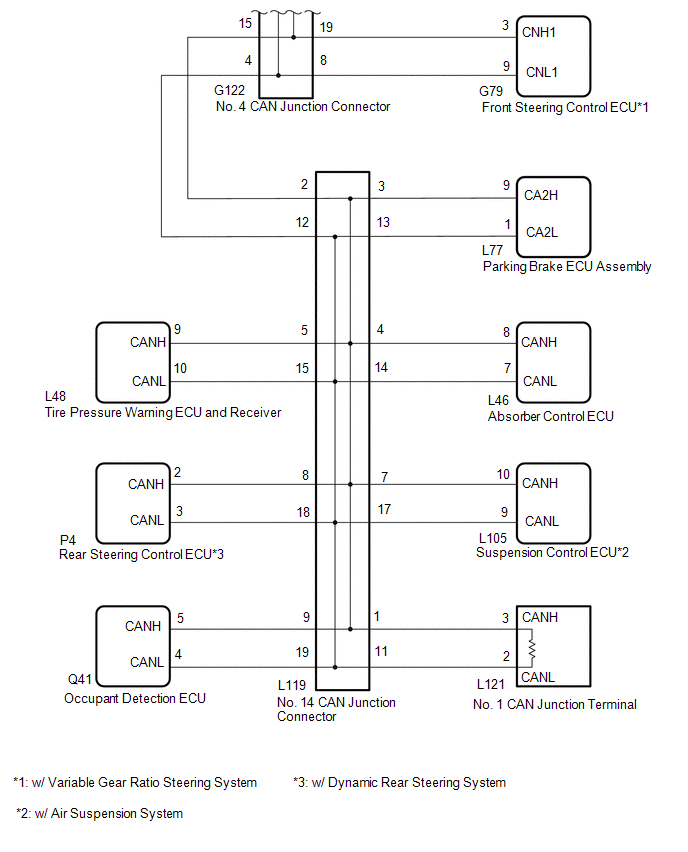

GTY828821

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
