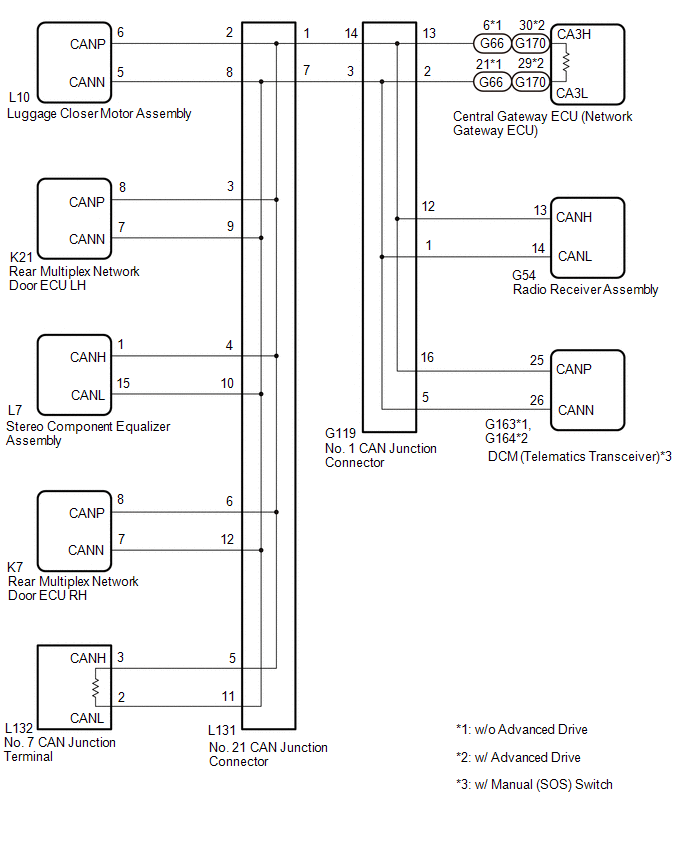

Check Bus 3 Lines for Short Circuit [10/2020 - 11/2021]: Wiring Diagram

GTY969682

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
