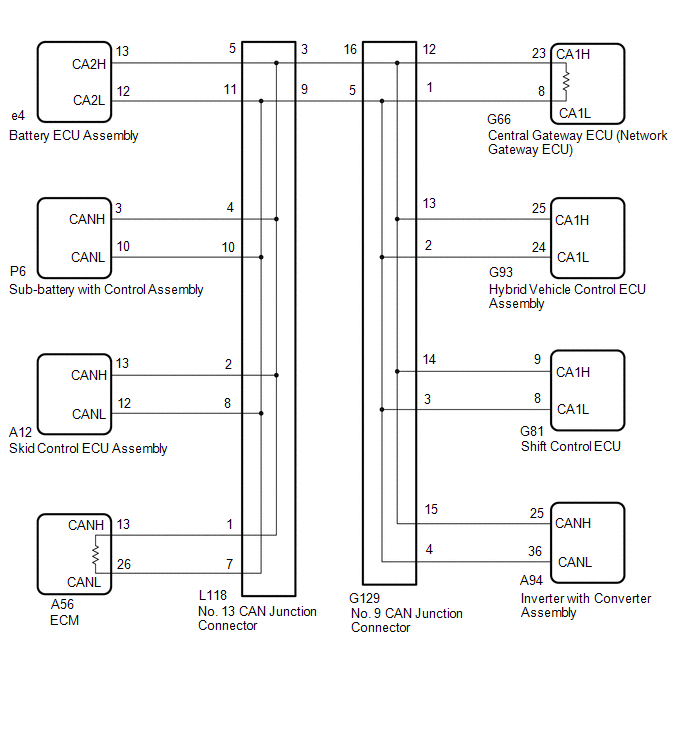

Check Bus 2 Line for Short to +B [09/2018 - 09/2019]: Wiring Diagram

GTY795892

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
