Check Bus 1 Lines for Short Circuit [11/2021 - 10/2022]: Wiring Diagram

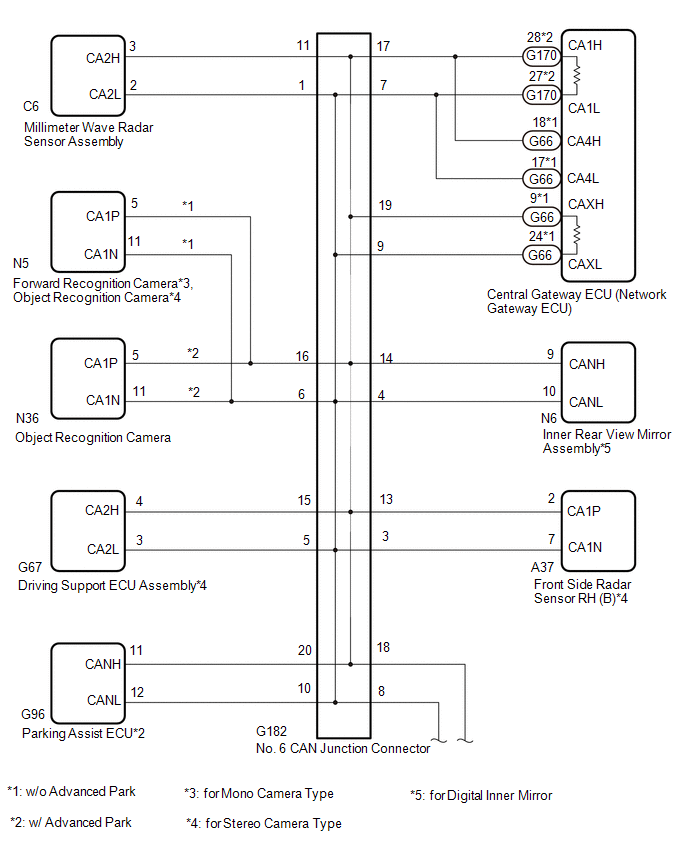

GTY1086969

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

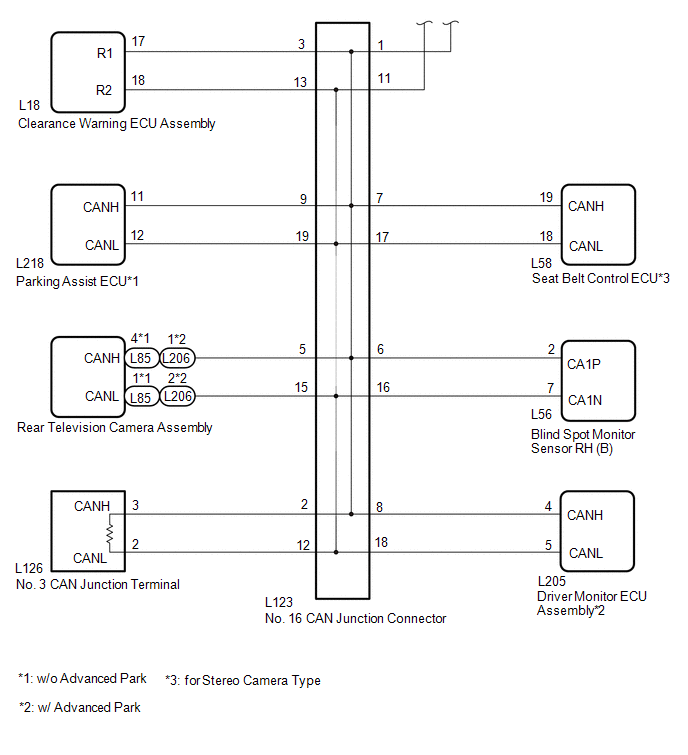

GTY1086379

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
