Check Bus 1 Lines for Short Circuit [10/2022 - 10/2023]: Wiring Diagram

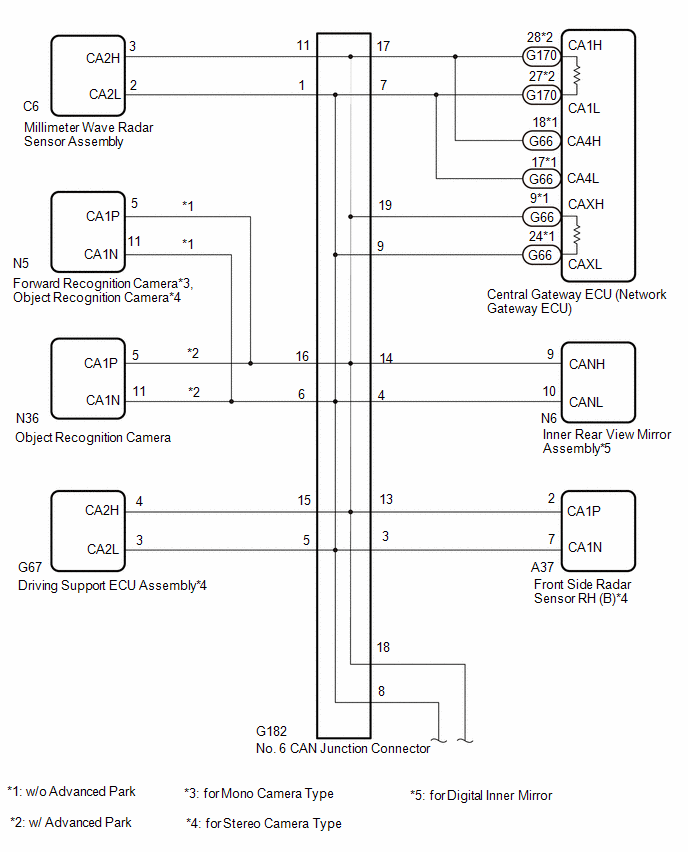

GTY1123188

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

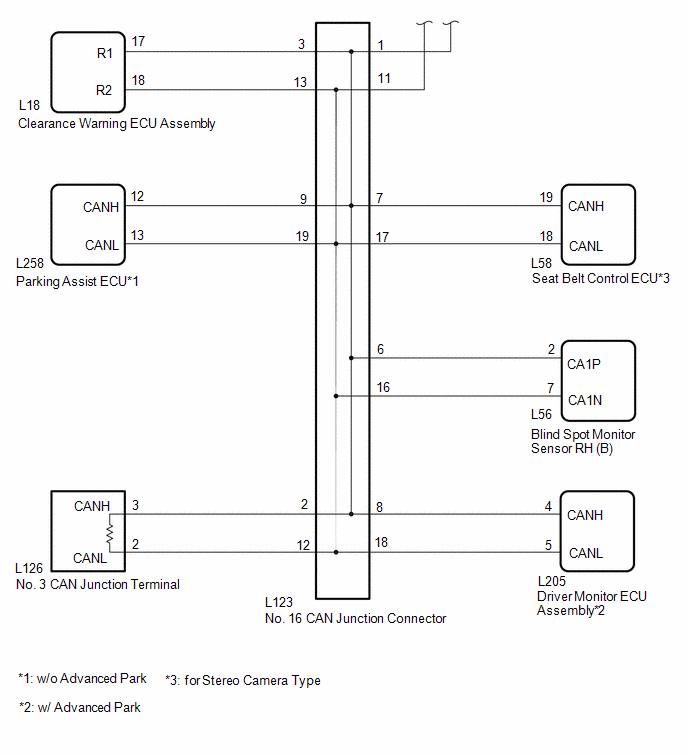

GTY1128380

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
