Check Bus 1 Line for Short to +B [10/2017 - 09/2018]: Wiring Diagram

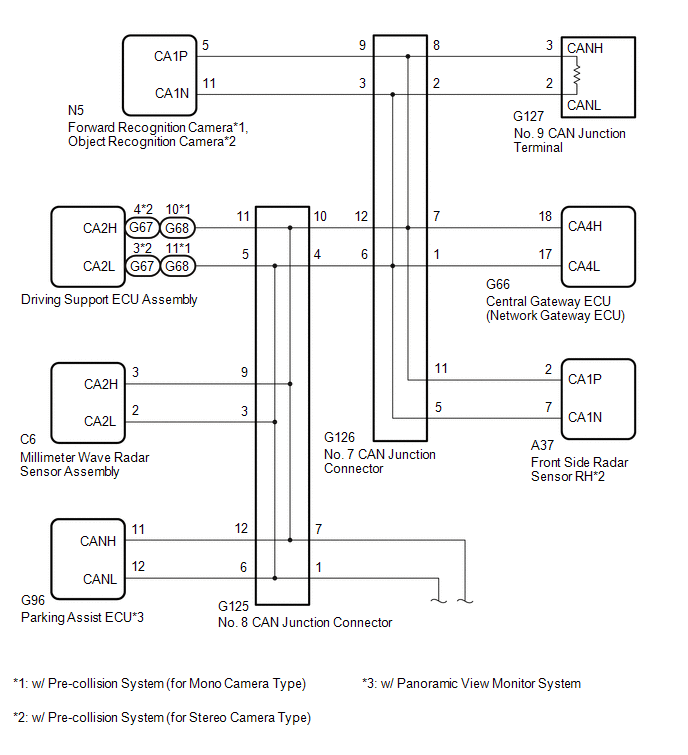

GTY815318

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

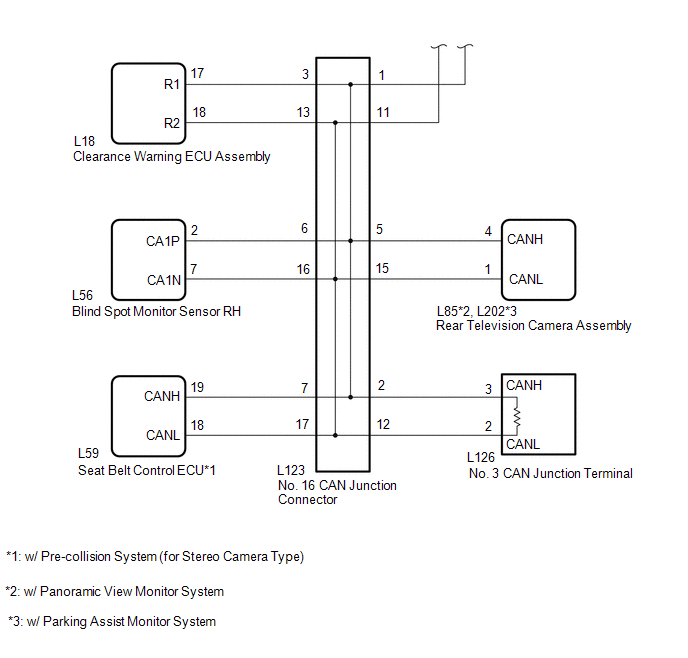

GTY808666

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
