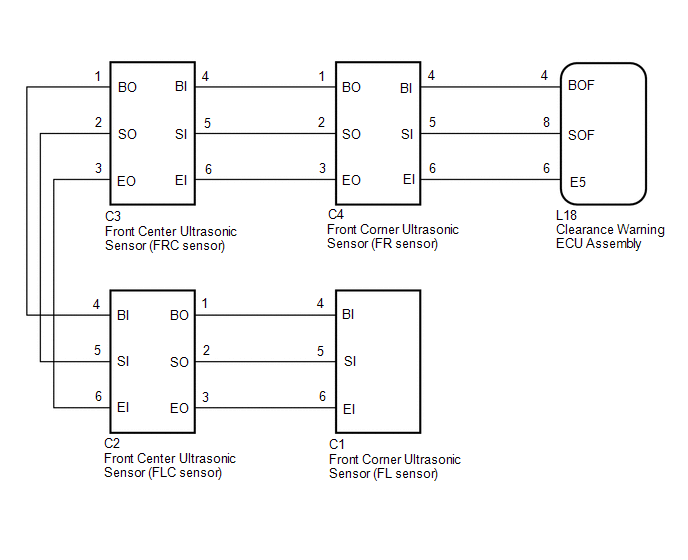

DTC C1AEC: Front Sensor Communication Malfunction [10/2017 - 10/2020]: Wiring Diagram

GTY812708

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
