DTC C1681: Front Camera Feedback Malfunction [10/2017 - 10/2022]: Procedure
- CHECK HARNESS AND CONNECTOR (PARKING ASSIST ECU - FRONT TELEVISION CAMERA ASSEMBLY)
- Disconnect the G95 parking assist ECU connector.
- Disconnect the C5 front television camera assembly connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition G95-15 (BCB+) - C5-6 (BCB+) Always Below 1 Ω G95-36 (BCV+) - C5-3 (BCV+) Always Below 1 Ω G95-13 (BCV-) - C5-2 (BCV-) Always Below 1 Ω G95-37 (BGND) - C5-5 (BGND) Always Below 1 Ω G95-15 (BCB+) or C5-6 (BCB+) - Body ground Always 10 kΩ or higher G95-36 (BCV+) or C5-3 (BCV+) - Body ground Always 10 kΩ or higher G95-13 (BCV-) or C5-2 (BCV-) - Body ground Always 10 kΩ or higher G95-37 (BGND) or C5-5 (BGND) - Body ground Always 10 kΩ or higher G95-14 (SGND) - Body ground Always 10 kΩ or higher Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 2
- CHECK PARKING ASSIST ECU (BCV-, BGND)
- Disconnect the parking assist ECU connector.
*a Component without harness connected
(Parking Assist ECU) - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 37 (BGND) - Body ground Always Below 1 Ω 13 (BCV-) - Body ground Always Below 1 Ω Result
Proceed to OK NG
Result:
NG
REPLACE PARKING ASSIST ECU. Refer to REMOVAL [10/2017 - 10/2020] , or refer to REMOVAL [10/2020 - 10/2022]
Result:
OK
See step 3
- Disconnect the parking assist ECU connector.
- CHECK PARKING ASSIST ECU (BCB+, BGND)
- Disconnect the front television camera assembly connector.
*a Component with harness connected
(Parking Assist ECU) - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition G95-37 (BGND) - Body ground Always Below 1 Ω - Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Switch Condition Specified Condition G95-15 (BCB+) - G95-37 (BGND) Power switch on (IG) 5.5 to 7.05 V G95-15 (BCB+) - G95-37 (BGND) Power switch off Below 1 V Result
Proceed to OK NG
Result:
NG
REPLACE PARKING ASSIST ECU. Refer to REMOVAL [10/2017 - 10/2020] , or refer to REMOVAL [10/2020 - 10/2022]
Result:
OK
See step 4
- Disconnect the front television camera assembly connector.
- CHECK FRONT TELEVISION CAMERA ASSEMBLY (BCV+, BGND)
- Remove the parking assist ECU with the connector still connected.
- Using an oscilloscope, check the waveform of the front television camera assembly.
HINT:
A waterproof connector is used for the front television camera assembly. Therefore, inspect the waveform at the parking assist ECU with the connector connected.
*a Component with harness connected

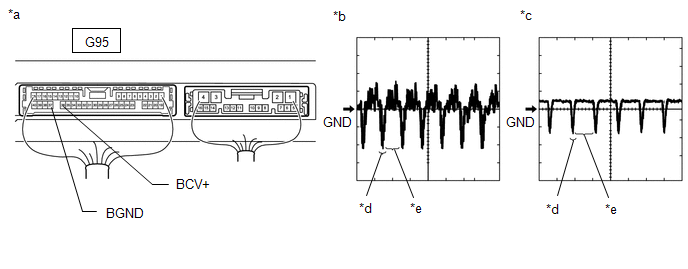

(Parking Assist ECU)*b Waveform 1 (camera lens not covered, displaying an image) *c Waveform 2 (camera lens covered, blacking out the screen) *d Synchronization Signal *e Video Waveform - - HINT:
- The video waveform changes according to the image sent by the front television camera assembly.
- The video waveform is constantly output when the power switch is on (ACC).
MEASUREMENT CONDITIONItem Content Terminal No. (Symbol) G95-36 (BCV+) - G95-37 (BGND) Tool Setting 200 mV/DIV., 50 μsec./DIV. Condition Power switch on (IG), panoramic view monitor switch on OK
Waveform is similar to that shown in the illustration.
Result
Proceed to OK NG
Result:
OK
REPLACE PARKING ASSIST ECU. Refer to REMOVAL [10/2017 - 10/2020] , or refer to REMOVAL [10/2020 - 10/2022]
Result:
NG
REPLACE FRONT TELEVISION CAMERA ASSEMBLY. Refer to REMOVAL [10/2017 - 10/2020] , or refer to REMOVAL [10/2020 - 11/2021] , or refer to REMOVAL [11/2021 - 10/2023]
