DTC C1622: Back Camera Feedback Malfunction [10/2017 - 10/2022]: Procedure
- CHECK HARNESS AND CONNECTOR (PARKING ASSIST ECU - REAR TELEVISION CAMERA ASSEMBLY)
- Disconnect the G95 parking assist ECU connector.
- Disconnect the L85 rear television camera assembly connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition G95-29 (CV+) - L85-3 (CV+) Always Below 1 Ω G95-30 (CV-) - L85-2 (CV-) Always Below 1 Ω G95-32 (CGND) - L85-5 (CGND) Always Below 1 Ω G95-29 (CV+) or L85-3 (CV+) - Body ground Always 10 kΩ or higher G95-30 (CV-) or L85-2 (CV-) - Body ground Always 10 kΩ or higher G95-32 (CGND) or L85-5 (CGND) - Body ground Always 10 kΩ or higher G95-31 (SGND) - Body ground Always 10 kΩ or higher Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 2
- CHECK PARKING ASSIST ECU (CV-, CGND)
- Disconnect the parking assist ECU connector.
*a Component without harness connected
(Parking Assist ECU) - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 30 (CV-) - Body ground Always Below 1 Ω 32 (CGND) - Body ground Always Below 1 Ω Result
Proceed to OK NG
Result:
NG
REPLACE PARKING ASSIST ECU. Refer to REMOVAL [10/2017 - 10/2020] , or refer to REMOVAL [10/2020 - 10/2022]
Result:
OK
See step 3
- Disconnect the parking assist ECU connector.
- CHECK HARNESS AND CONNECTOR (REAR TELEVISION CAMERA ASSEMBLY - AUXILIARY BATTERY)
- Disconnect the rear television camera assembly.
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Switch Condition Specified Condition L85-6 (CB+) - Body ground Power switch on (IG) 11 to 14 V Power switch off Below 1 V Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 4
- CHECK REAR TELEVISION CAMERA ASSEMBLY (CV+, CGND)
- Remove the parking assist ECU with the connector still connected.
- Using an oscilloscope, check the waveform of the rear television camera assembly.
HINT:
A waterproof connector is used for the rear television camera assembly. Therefore, inspect the waveform at the parking assist ECU with the connector connected.
*a Component with harness connected

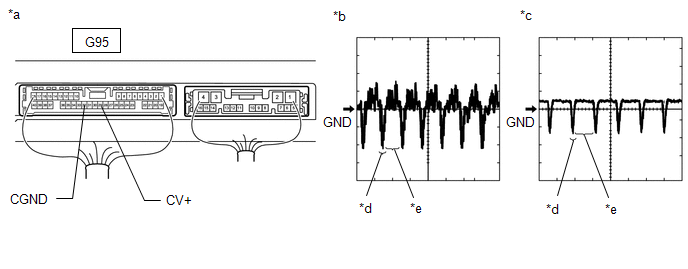

(Parking Assist ECU)*b Waveform 1 (camera lens not covered, displaying an image) *c Waveform 2 (camera lens covered, blacking out the screen) *d Synchronization Signal *e Video Waveform - - HINT:
- The video waveform changes according to the image sent by the rear television camera assembly.
- The video waveform is constantly output when the power switch is on (ACC).
MEASUREMENT CONDITIONItem Content Terminal No. (Symbol) G95-29 (CV+) - G95-32 (CGND) Tool Setting 200 mV/DIV., 50 μsec./DIV. Condition Power switch on (IG), panoramic view monitor switch on OK
Waveform is similar to that shown in the illustration.
Result
Proceed to OK NG
Result:
OK
REPLACE PARKING ASSIST ECU. Refer to REMOVAL [10/2017 - 10/2020] , or refer to REMOVAL [10/2020 - 10/2022]
Result:
NG
REPLACE REAR TELEVISION CAMERA ASSEMBLY. Refer to REMOVAL [10/2017 - 10/2020] , or refer to REMOVAL [10/2020 - 11/2021] , or refer to REMOVAL [11/2021 - 10/2022]
