Removal [10/2023 - ]: Procedure

  1. FRONT SIDE RADAR ECU DATA SAVE

    See step  1

  2. REMOVE FRONT BUMPER ASSEMBLY

    Refer to REMOVAL [10/2023 - ]

  3. REMOVE FRONT SIDE RADAR SENSOR
    NOTE:
    • Do not drop the front side radar sensor.
    • Do not drop the front side radar sensor. If it is dropped, replace it with a new one.

    HINT:

    Use the same procedure described for the other side.

    1. Disconnect the connector.

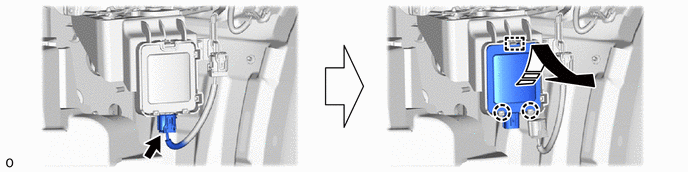

      GTY1231755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
    2. Detach the guide, claw and remove the front side radar sensor as shown in the illustration.
  4. REMOVE FRONT FENDER REINFORCEMENT SUB-ASSEMBLY TOP LH

    Refer to PROCEDURE - Step 2

  5. REMOVE FRONT FENDER REINFORCEMENT SUB-ASSEMBLY TOP RH

    HINT:

    Use the same procedure described for the LH side.

  6. REMOVE HEADLIGHT ASSEMBLY LH

    Refer to PROCEDURE - Step 3

  7. REMOVE HEADLIGHT ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  8. REMOVE FRONT SIDE RADAR SENSOR BRACKET LH
    1. Remove the 3 bolts and front side radar sensor bracket LH.

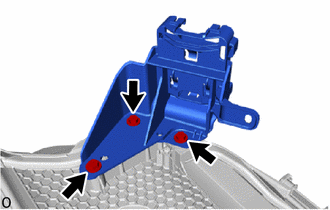

      GTY1236622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE FRONT SIDE RADAR SENSOR BRACKET RH

    HINT:

    Use the same procedure described for the LH side.
