Components [10/2023 - ]

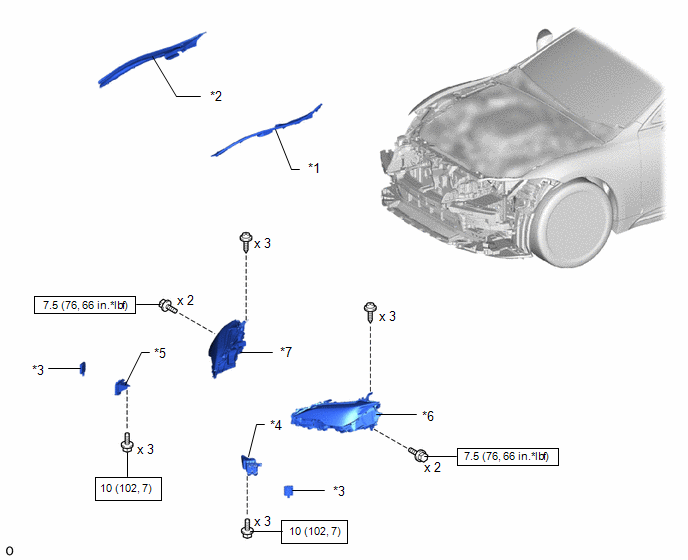

Fig 1: Front Side Radar Sensor (W/O Front Lidar Sensor) Replacement Components With Torque Specifications [10/2023 - ]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT FENDER REINFORCEMENT SUB-ASSEMBLY TOP LH | *2 | FRONT FENDER REINFORCEMENT SUB-ASSEMBLY TOP RH |
| *3 | FRONT SIDE RADAR SENSOR | *4 | FRONT SIDE RADAR SENSOR BRACKET LH |
| *5 | FRONT SIDE RADAR SENSOR BRACKET RH | *6 | HEADLIGHT ASSEMBLY LH |
| *7 | HEADLIGHT ASSEMBLY RH | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
