Removal [10/2023 - ]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY

    Refer to REMOVAL [10/2023 - ]

  2. REMOVE FRONT TELEVISION CAMERA ASSEMBLY
    1. Disconnect the connector and detach the clamp.

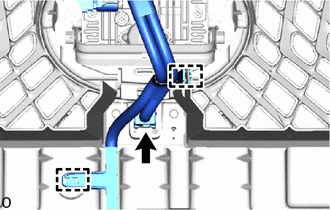

      GTY833953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws.

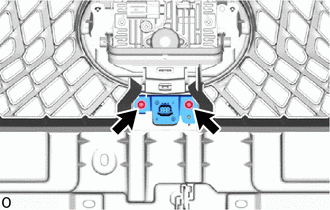

      GTY805647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Detach the guide and remove the front television camera assembly.

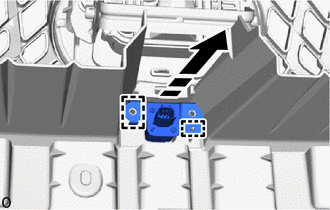

      GTY831455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
