Components [10/2017 - ]

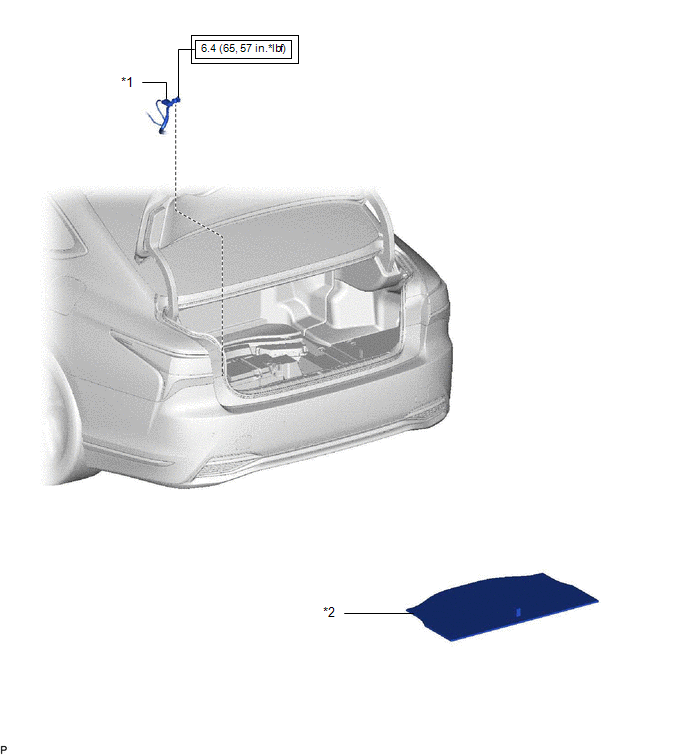

Fig 1: Clearance Warning Buzzer (For Front Side) Replacement Components With Torque Specifications (1 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NEGATIVE AUXILIARY BATTERY TERMINAL | *2 | LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |

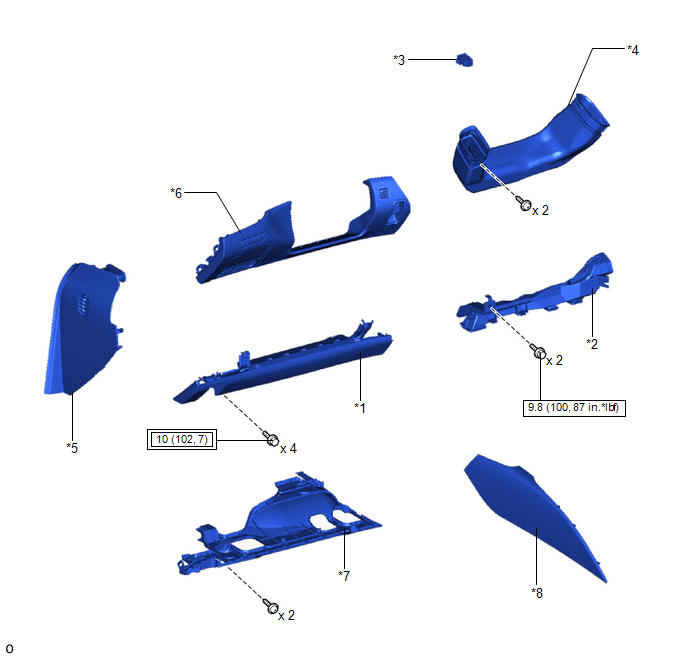

Fig 2: Clearance Warning Buzzer (For Front Side) Replacement Components With Torque Specifications (2 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | LOWER NO. 1 INSTRUMENT PANEL AIR BAG ASSEMBLY | *2 | NO. 1 AIR DUCT SUB-ASSEMBLY |
| *3 | NO. 1 CLEARANCE WARNING BUZZER | *4 | NO. 1 HEATER TO REGISTER DUCT |
| *5 | INSTRUMENT SIDE PANEL LH | *6 | LOWER NO. 1 INSTRUMENT PANEL PAD SUB-ASSEMBLY |
| *7 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | *8 | NO. 1 CONSOLE UPPER PANEL GARNISH |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque |
