Components [10/2023 - ]

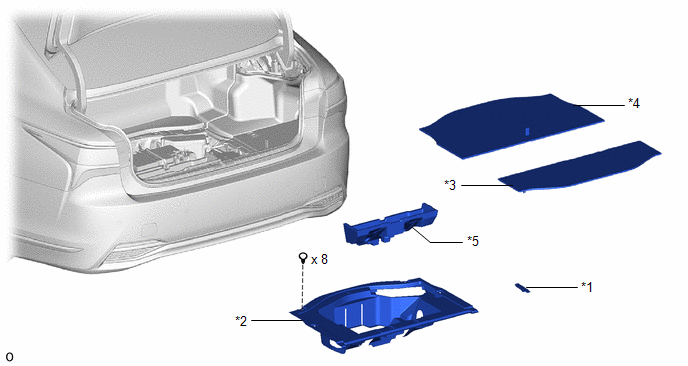

Fig 1: Digital Key Receiver (For Luggage Compartment) Replacement Components
GTY1231458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 BLE INDOOR DIGITAL KEY RECEIVER ASSEMBLY *2 LOWER INNER LUGGAGE COMPARTMENT TRIM COVER
*3 LUGGAGE COMPARTMENT FLOOR MAT *4 LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY
*5 TOOL BOX -
