Removal [10/2023 - ]: Procedure

  1. REMOVE CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [10/2023 - ]

  2. REMOVE BLE INDOOR DIGITAL KEY RECEIVER ASSEMBLY

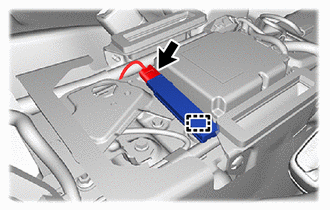

    1. GTY1238049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Disconnect the connector.

    2. Detach the clamp and remove the BLE indoor digital key receiver assembly.
      NOTE:

      Do not reuse parts if dropped or subjected to any strong impact.
