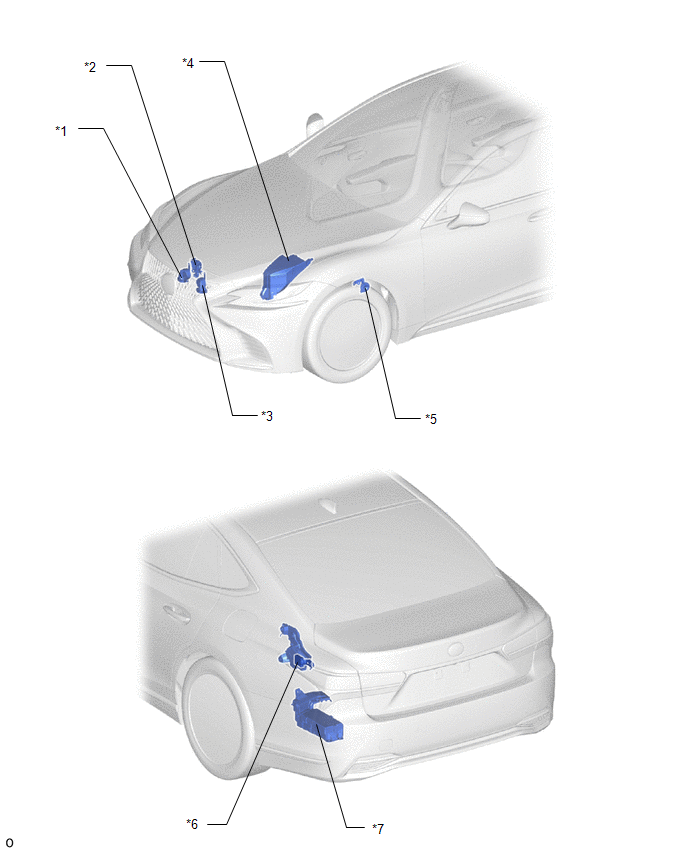

Parts Location [10/2017 - 10/2023]: Illustration
| *1 | HIGH PITCHED HORN ASSEMBLY | *2 | HOOD LOCK ASSEMBLY (ENGINE HOOD COURTESY SWITCH) |
| *3 | LOW PITCHED HORN ASSEMBLY | *4 | NO. 1 ENGINE ROOM RELAY BLOCK - HORN RELAY - HORN FUSE |
| *5 | SECURITY HORN ASSEMBLY | *6 | LUGGAGE CLOSER MOTOR ASSEMBLY |
| *7 | NO. 2 LUGGAGE ROOM RELAY BLOCK - LUG-B NO. 4 FUSE |
- | - |
| *1 | FRONT DOOR WITH MOTOR LOCK ASSEMBLY LH | *2 | FRONT DOOR WITH MOTOR LOCK ASSEMBLY RH |
| *3 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH | *4 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY RH |
| *5 | REAR DOOR LOCK ASSEMBLY LH | *6 | REAR DOOR LOCK ASSEMBLY RH |
| *7 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY LH | *8 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY RH |
| *9 | DOOR CONTROL RECEIVER | - | - |
| *1 | AIR CONDITIONING CONTROL ASSEMBLY - SECURITY INDICATOR LIGHT |
*2 | COMBINATION METER ASSEMBLY |
| *3 | POWER SWITCH | *4 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *5 | DLC3 | *6 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - IG1 D NO. 4 FUSE - ACC D FUSE - ECU-B D NO. 1 FUSE - AM2 FUSE - MPX-B D NO. 1 FUSE |
| *7 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | - | - |
