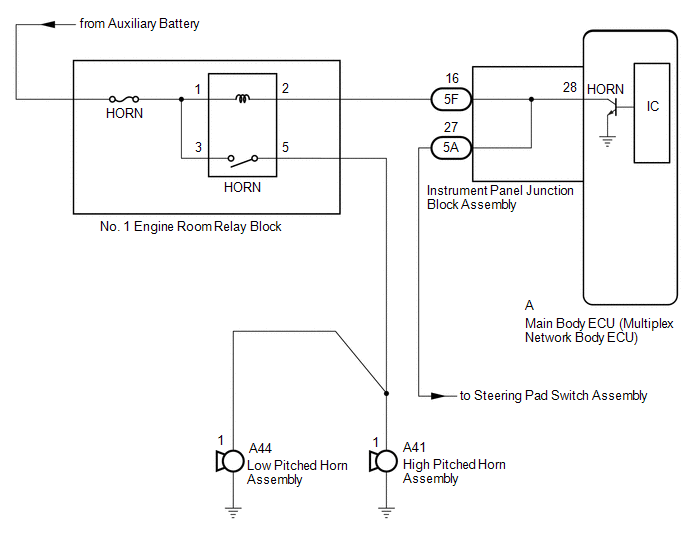

Horn Circuit [10/2017 - 10/2023]: Wiring Diagram

GTY791933

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
