Removal [10/2023 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [10/2023 - ]

  2. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 25

  3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 4

  4. REMOVE REAR DOOR TRIM UPPER COVER LH

    Refer to PROCEDURE - Step 4

  5. REMOVE REAR DOOR ARMREST COVER LH

    Refer to PROCEDURE - Step 5

  6. REMOVE REAR DOOR NO. 2 ARMREST COVER LH

    Refer to PROCEDURE - Step 6

  7. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 7

  8. REMOVE REAR DOOR TRIM COVER LH

    Refer to PROCEDURE - Step 15

  9. REMOVE REAR DOOR NO. 2 FRAME GARNISH LH

    Refer to PROCEDURE - Step 16

  10. REMOVE REAR DOOR FRAME GARNISH LH

    Refer to PROCEDURE - Step 17

  11. REMOVE CURTAIN RAIL SIDE COVER LH (w/ Rear Door Sunshade)

    Refer to PROCEDURE - Step 18

  12. REMOVE REAR CURTAIN SUB-ASSEMBLY LH (w/ Rear Door Sunshade)

    Refer to PROCEDURE - Step 19

  13. REMOVE REAR SIDE WINDOW COVER LH (w/ Rear Door Sunshade)

    Refer to PROCEDURE - Step 20

  14. REMOVE REAR DOOR GLASS INNER WEATHERSTRIP LH

    Refer to PROCEDURE - Step 21

  15. REMOVE REAR DOOR FRONT BELT SEAL LH

    Refer to PROCEDURE - Step 22

  16. REMOVE REAR DOOR REAR BELT SEAL LH

    Refer to PROCEDURE - Step 23

  17. REMOVE REAR SPEAKER ASSEMBLY

    Refer to PROCEDURE - Step 5

  18. REMOVE REAR MULTIPLEX NETWORK DOOR ECU LH

    Refer to PROCEDURE - Step 25

  19. REMOVE REAR DOOR SERVICE HOLE COVER LH

    Refer to PROCEDURE - Step 26

  20. REMOVE REAR DOOR FRONT BELT MOULDING END COVER LH

    Refer to PROCEDURE - Step 27

  21. REMOVE REAR DOOR REAR BELT MOULDING END COVER LH

    Refer to PROCEDURE - Step 28

  22. REMOVE REAR DOOR NO. 2 WEATHERSTRIP LH

    Refer to PROCEDURE - Step 29

  23. REMOVE REAR DOOR WINDOW FRAME MOULDING LH (CENTER PILLAR SIDE)

    Refer to PROCEDURE - Step 20

  24. REMOVE REAR DOOR WINDOW FRAME MOULDING LH (REAR PILLAR SIDE)

    Refer to PROCEDURE - Step 22

  25. REMOVE REAR DOOR OUTSIDE MOULDING INSERT LH

    Refer to PROCEDURE - Step 23

  26. REMOVE REAR DOOR BELT MOULDING LH

    Refer to PROCEDURE - Step 23

  27. REMOVE REAR DOOR QUARTER WINDOW GLASS SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 34

  28. REMOVE REAR DOOR GLASS RUN LH

    Refer to PROCEDURE - Step 35

  29. REMOVE REAR DOOR GLASS SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 36

  30. REMOVE REAR DOOR FRONT WINDOW GUIDE SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 37

  31. REMOVE REAR DOOR REAR WINDOW FRAME LH

    Refer to PROCEDURE - Step 38

  32. REMOVE REAR DOOR BELT MOULDING SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 30

  33. REMOVE REAR DOOR UPPER WINDOW FRAME MOULDING LH

    Refer to PROCEDURE - Step 32

  34. REMOVE REAR DOOR NO. 3 GLASS RUN LH

    Refer to PROCEDURE - Step 31

  35. REMOVE REAR DOOR WINDOW REGULATOR ASSEMBLY LH

    Refer to PROCEDURE - Step 42

  36. REMOVE REAR DOOR LOCK ASSEMBLY LH

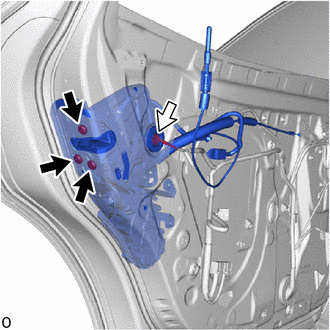

    1. Disconnect the connector.
      GTY814068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      "TORX" screw
      Connector
    2. Using a T30 "TORX" socket wrench, remove the 3 TORX screws.

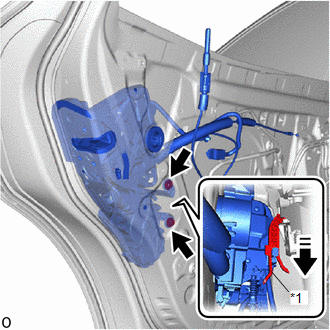

    3. Remove the 2 bolts.
      GTY822327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Release plate
      Remove in this Direction
    4. Remove the release plate of the rear door outside handle frame sub-assembly LH in the direction indicated by the arrow shown in the illustration to remove the rear door lock assembly LH.
      NOTE:

      Do not damage the vehicle body with the rear door lock assembly LH.

      HINT:

      Remove the rear door lock assembly LH while supporting it with one hand.

    5. When reusing rear door lock assembly LH:

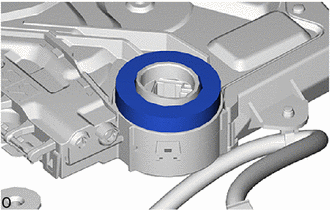

      1. Remove the door lock wire harness seal from the rear door lock assembly LH.
        GTY777275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. REMOVE REAR DOOR LOCK COVER SUB-ASSEMBLY LH

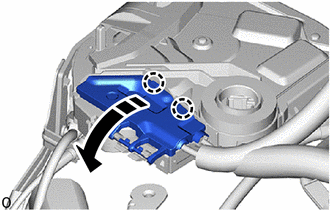

    1. Using a thin-bladed screwdriver, detach the claw and open the rear door lock cover sub-assembly LH as shown in the illustration.
      GTY782838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Open in this Direction
      Protective Tape

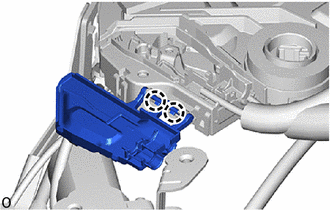

    2. Detach the claw and remove the rear door lock cover sub-assembly LH.
      GTY827754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. REMOVE REAR DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY LH

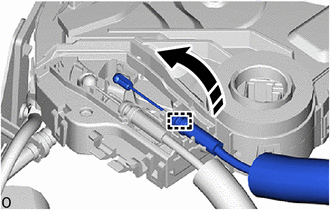

    1. As shown in the illustration, detach the clamp and remove the rear door lock remote control cable assembly LH.
      GTY791466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  39. REMOVE REAR DOOR INSIDE LOCKING CABLE ASSEMBLY LH

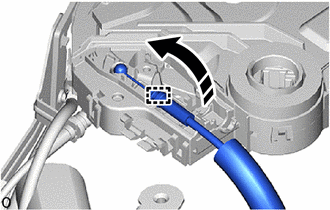

    1. As shown in the illustration, detach the clamp and remove the rear door inside locking cable assembly LH.
      GTY796617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
