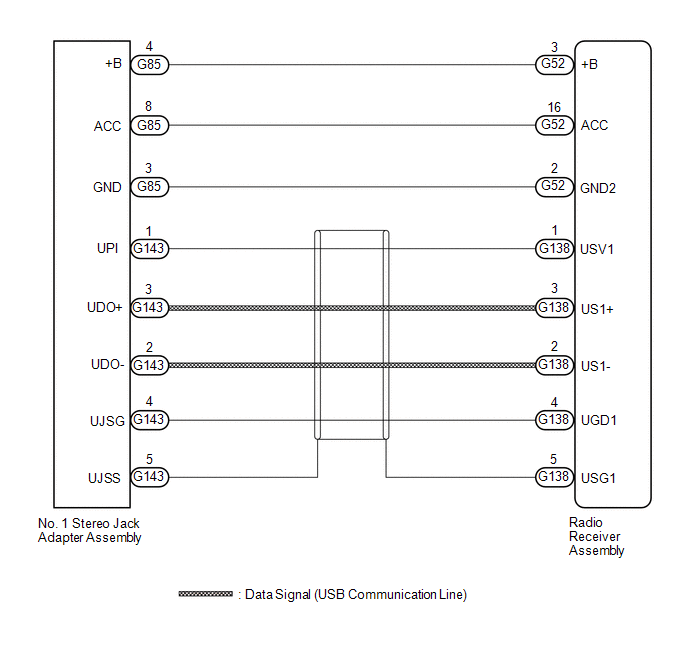

USB Audio System Recognition/Play Error [12/2017 - 10/2022]: Wiring Diagram

GTY820798

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
