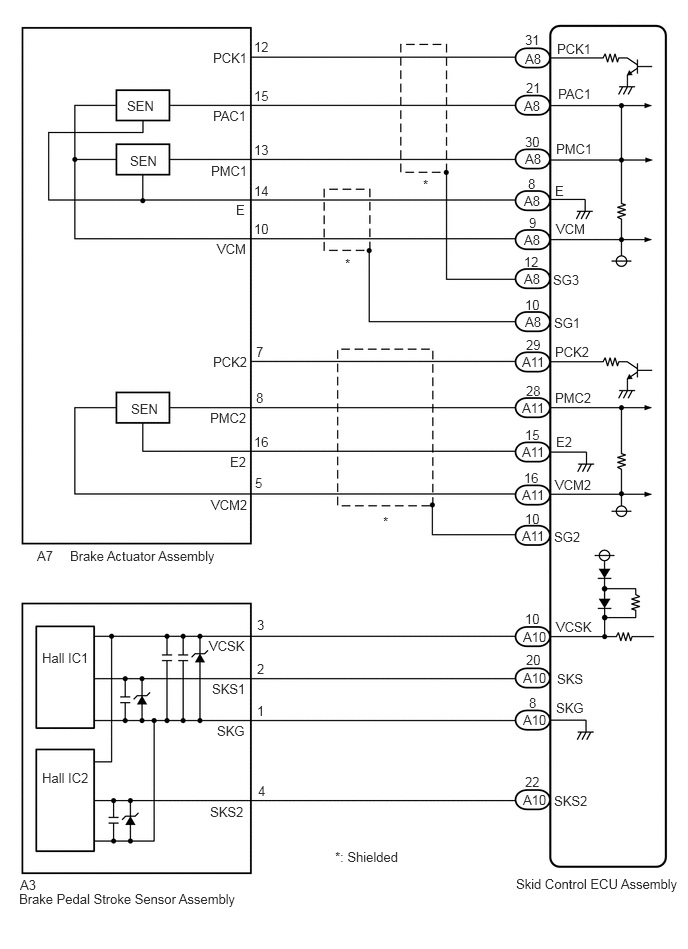

DTC C1247/47: Stroke Sensor Malfunction; DTC C1392/48: Stroke Sensor Zero Point Calibration Undone [03/2017 - 09/2018]: Wiring Diagram

GTY820897

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
