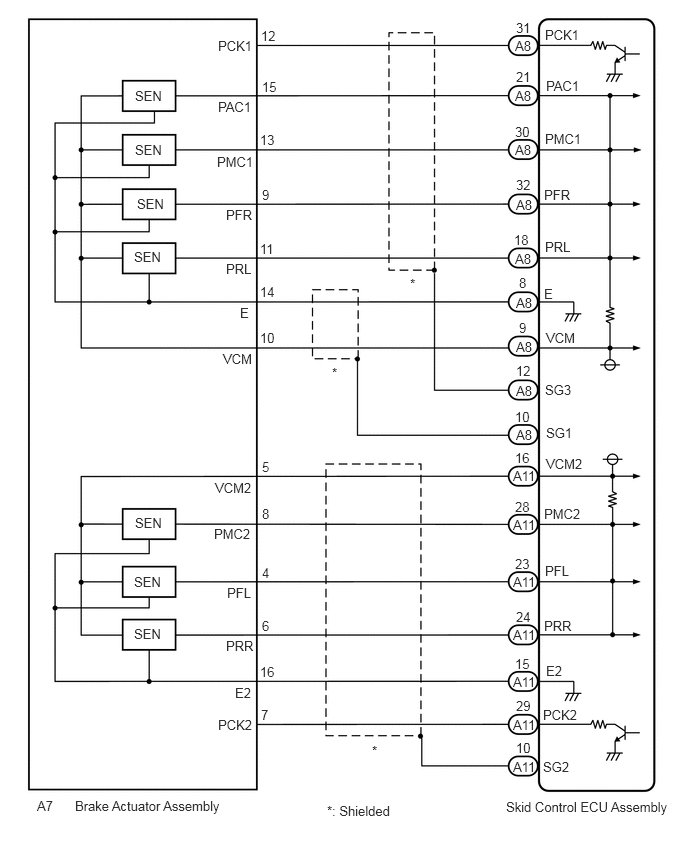

DTC C1246/46: Master Cylinder Pressure Sensor Malfunction; DTC C1364/61: Wheel Cylinder Pressure Sensor Malfunction [03/2017 - 09/2018]: Wiring Diagram

GTY814218

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
