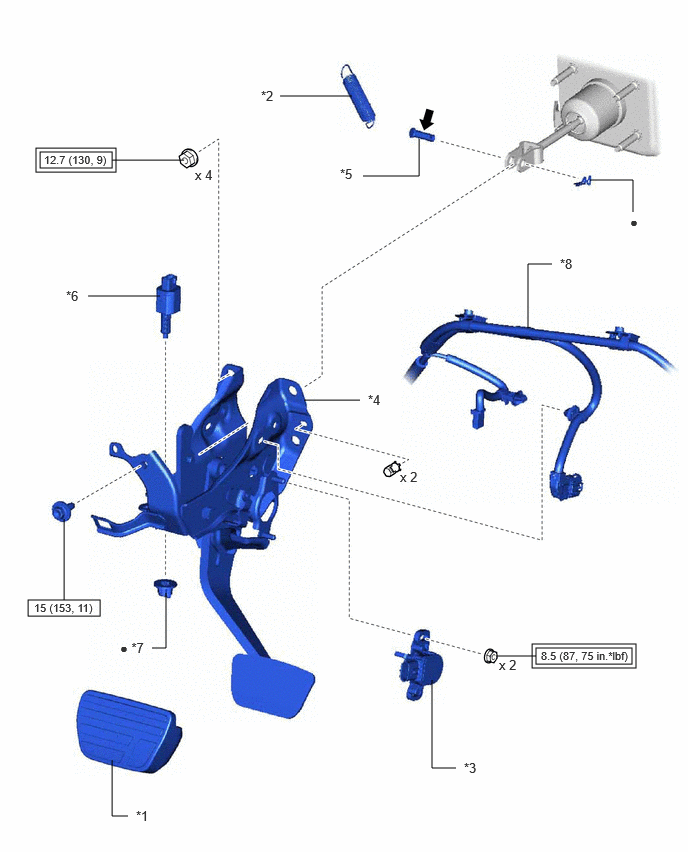

Components [04/2020 - 05/2023]
| *1 | BRAKE PEDAL PAD | *2 | BRAKE PEDAL RETURN SPRING |
| *3 | BRAKE PEDAL STROKE SENSOR ASSEMBLY | *4 | BRAKE PEDAL SUPPORT ASSEMBLY |
| *5 | PUSH ROD PIN | *6 | STOP LIGHT SWITCH ASSEMBLY |
| *7 | STOP LIGHT SWITCH MOUNTING ADJUSTER | *8 | WIRE HARNESS |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| • | Non-reusable part | Lithium soap base glycol grease |
