Inspection [03/2017 - ]: Procedure
- INSPECT BRAKE BOOSTER WITH ACCUMULATOR PUMP ASSEMBLY
- Check both the connector case and the terminal for deformation and corrosion.
OK
No deformation or corrosion.
- Measure the resistance according to the value(s) in the table below.

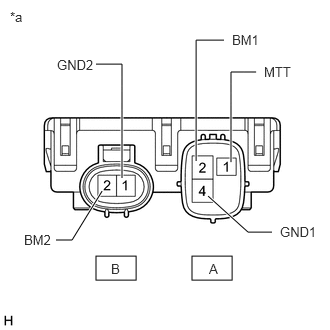

*a Component without harness connected
(Brake Booster with Accumulator Pump Assembly)Standard Resistance
Tester Connection Condition Specified Condition A2 (BM1) - A4 (GND1) Always Below 10 Ω B2 (BM2) - A4 (GND1) Below 10 Ω A2 (BM1) - B2 (BM2) Always Below 1 Ω A4 (GND1) -B1 (GND2) Below 1 Ω A2 (BM1) - A1 (MTT) Always 950 to 1050 Ω B2 (BM2) - A1 (MTT) 950 to 1050 Ω
- Check both the connector case and the terminal for deformation and corrosion.
