Adjustment [03/2017 - ]: Procedure

INSPECT FRONT DOOR LH

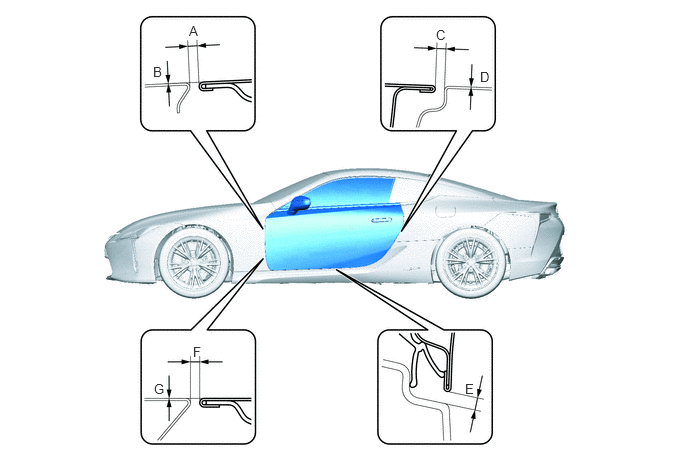

Check that the clearance measurements of areas A to G are within the standard ranges.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

STANDARD CLEARANCE:

Area	Specified Condition	Area	Specified Condition
A	2.0 to 5.0 mm (0.079 to 0.197 in.)	B	-1.5 to 1.5 mm (-0.059 to 0.059 in.)
C	2.0 to 5.0 mm (0.079 to 0.197 in.)	D	-1.5 to 1.5 mm (-0.059 to 0.059 in.)
E	3.5 to 6.5 mm (0.138 to 0.256 in.)	F	2.0 to 5.0 mm (0.079 to 0.197 in.)
G	-1.5 to 1.5 mm (-0.059 to 0.059 in.)	-	-

ADJUST FRONT DOOR LH

NOTE:

Make sure to turn the engine switch off before adjusting the door lock strikers.

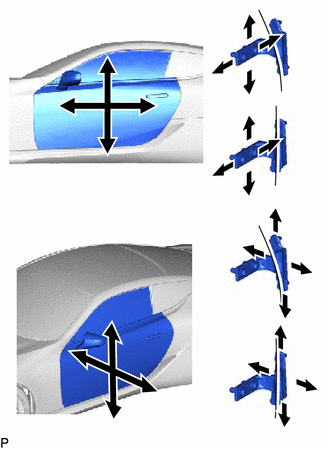

Using SST, loosen the hinge bolts on the body and adjust the door position.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST: 09812-00010

Tighten the hinge bolts on the body after the adjustment.
Torque: 32.5 N*m (331 kgf*cm, 24 ft.*lbf)
Loosen the hinge bolts on the door and adjust the door position.
Tighten the hinge bolts on the door after the adjustment.
Torque: 26 N*m (265 kgf*cm, 19 ft.*lbf)

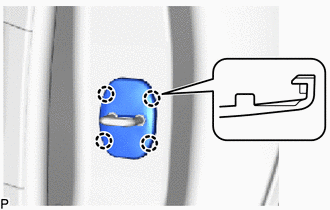

Detach the claws and remove the front door lock striker cover.

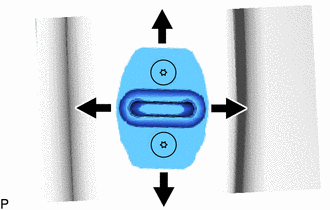

Using a T40 "TORX" socket, adjust the striker position by slightly loosening the striker mounting screws and hitting the striker with a brass bar and hammer.

Using a T40 "TORX" socket wrench, tighten the 2 striker mounting screws after adjustment.
Torque: 23 N*m (235 kgf*cm, 17 ft.*lbf)

Attach the claws to install the front door lock striker cover.
