Removal [03/2017 - 05/2023]: Procedure

  1. PRECAUTION
    WARNING:

    Be sure to read Precaution thoroughly before servicing.

    Refer to PRECAUTION [03/2017 - 04/2020] , or refer to PRECAUTION [04/2020 - 05/2023]

    GTY824211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [03/2017 - 05/2023]

  2. REMOVE NO. 2 DECK BOARD

    Refer to PROCEDURE - Step 11 [03/2017 - 01/2021] , or refer to PROCEDURE - Step 12 [01/2021 - 05/2023]

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

    WARNING:
    • Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
    • If the airbag deploys for any reason, it may cause a serious accident.
    GTY581108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [03/2017 - 04/2020] , or refer to INITIALIZATION [04/2020 - 05/2023]

  4. REMOVE FRONT DOOR TRIM COVER SUB-ASSEMBLY LH (for Driver Side)

    Refer to PROCEDURE - Step 4 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 4 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 4 [04/2020 - 05/2023]

  5. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH (for Driver Side)

    Refer to PROCEDURE - Step 6 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 6 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 6 [04/2020 - 05/2023]

  6. REMOVE FRONT DOOR ASSIST GRIP ASSEMBLY RH (for Front Passenger Side)

    Refer to PROCEDURE - Step 8 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 8 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 8 [04/2020 - 05/2023]

  7. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY RH (for Front Passenger Side)

    Refer to PROCEDURE - Step 10 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 10 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 10 [04/2020 - 05/2023]

  8. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH LH

    Refer to PROCEDURE - Step 20 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 20 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 20 [04/2020 - 05/2023]

  9. REMOVE NO. 1 SPEAKER ASSEMBLY WITH BOX

    Refer to PROCEDURE - Step 5

  10. REMOVE NO. 1 FRONT DOOR HOLE COVER SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 8

  11. REMOVE FRONT DOOR FRONT LOWER FRAME UPPER COVER LH

    Refer to PROCEDURE - Step 6

  12. REMOVE FRONT DOOR DIVISION BAR SEAL LH

    Refer to PROCEDURE - Step 26 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 26 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 26 [04/2020 - 05/2023]

  13. REMOVE FRONT DOOR INSIDE PANEL SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 31 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 31 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 32 [04/2020 - 05/2023]

  14. REMOVE FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH

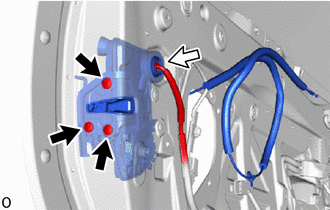

    1. Disconnect the connector.
      GTY783200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      "TORX" screw
      Connector
    2. Using a T30 "TORX" socket wrench, remove the 3 screws.
    3. When reusing the front door lock with motor assembly LH:
      GTY802852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

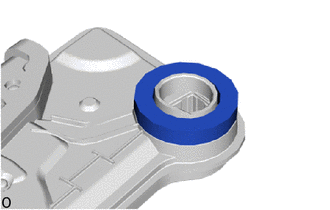

      1. Remove the door lock wire harness seal from the front door lock with motor assembly LH.
  15. REMOVE FRONT DOOR LOCK COVER SUB-ASSEMBLY LH

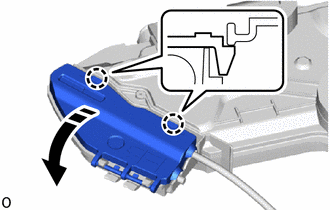

    1. Using a screwdriver, detach the claws as shown in the illustration.
      GTY794734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Open in this Direction

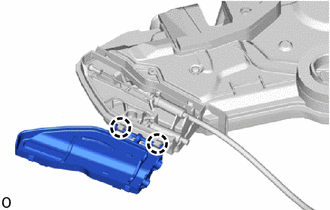

    2. Detach the claws to remove the front door lock cover sub-assembly LH.
      GTY802858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE FRONT DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY LH

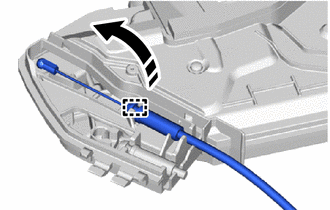

    1. Detach the clamp and remove the front door lock remote control cable assembly LH from the front door lock with motor assembly LH as shown in the illustration.
      GTY793447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  17. REMOVE FRONT DOOR INSIDE LOCKING CABLE ASSEMBLY LH

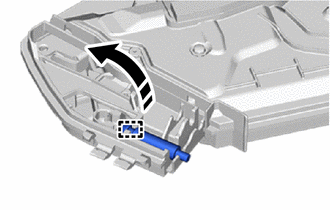

    1. Detach the clamp and remove the front door inside locking cable assembly LH from the front door lock with motor assembly LH as shown in the illustration.
      GTY812592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
