Installation [03/2017 - 05/2023]: Procedure

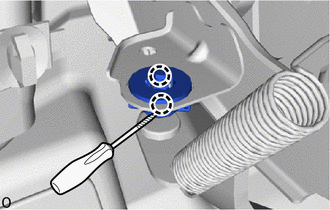

- INSTALL STOP LIGHT SWITCH MOUNTING ADJUSTER
- INSTALL STOP LIGHT SWITCH ASSEMBLY

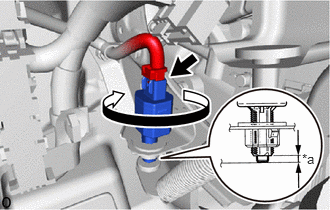

- Insert the stop light switch assembly to the stop light switch mounting adjuster until the switch body slightly touches the brake pedal.NOTE:
Do not depress the brake pedal.
- Rotate the stop light switch assembly clockwise by approximately one fourth of a rotation.
*a Protrusion Amount Measurement Area - Check the protrusion amount of the shaft.
Standard
1.5 to 2.6 mm (0.0591 to 0.1024 in.)
- Connect the connector.
- Insert the stop light switch assembly to the stop light switch mounting adjuster until the switch body slightly touches the brake pedal.
- INSTALL DRIVER SIDE JUNCTION BLOCK ASSEMBLY WITH MAIN BODY ECU
Refer to INSTALLATION [03/2017 - 05/2023]
- INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 30 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 30 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 30 [04/2020 - 05/2023]
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Refer to PROCEDURE - Step 2
NOTE:When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [03/2017 - 04/2020] , or refer to INITIALIZATION [04/2020 - 05/2023]
- INSTALL NO. 2 DECK BOARD
Refer to PROCEDURE - Step 13 [03/2017 - 01/2021] , or refer to PROCEDURE - Step 13 [01/2021 - ]
- PERFORM DIAGNOSTIC SYSTEM CHECK
Refer to DTC CHECK / CLEAR [03/2017 - 04/2020] , or refer to DTC CHECK / CLEAR [04/2020 - ]
- CHECK SRS WARNING LIGHT
Refer to OPERATION CHECK [03/2017 - 04/2020] , or refer to OPERATION CHECK [04/2020 - ]
