System Diagram [08/2019 - 08/2021]

HINT:

Inspect the communication function by CAN communication system.

Refer to SYSTEM DIAGRAM [08/2019 - 08/2021]

1. Meter Circuit

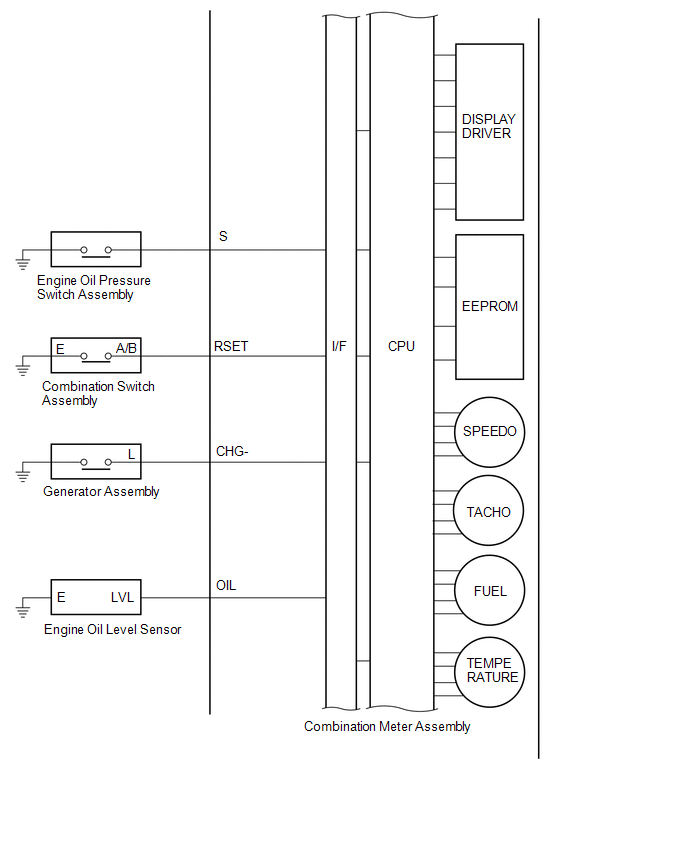

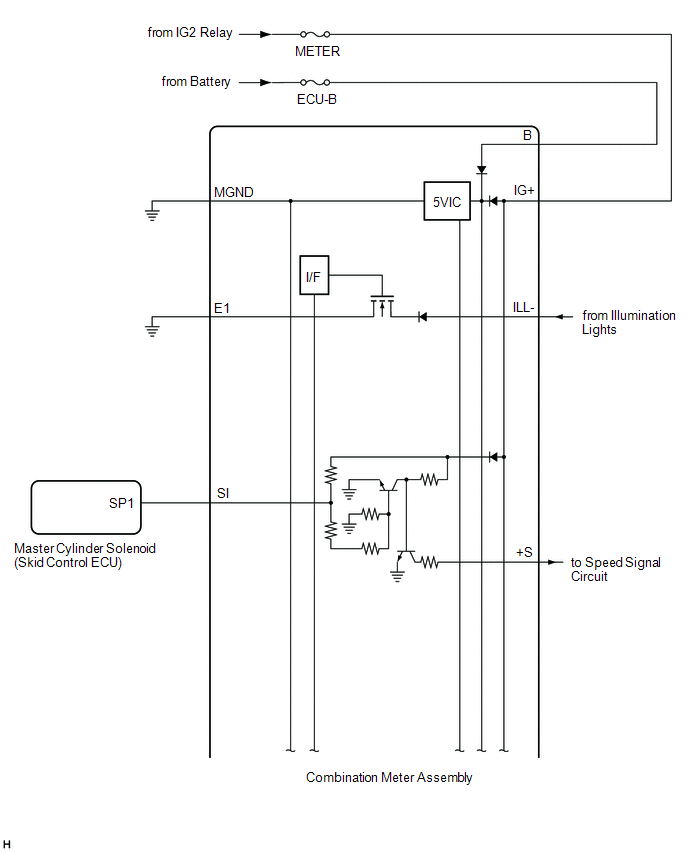

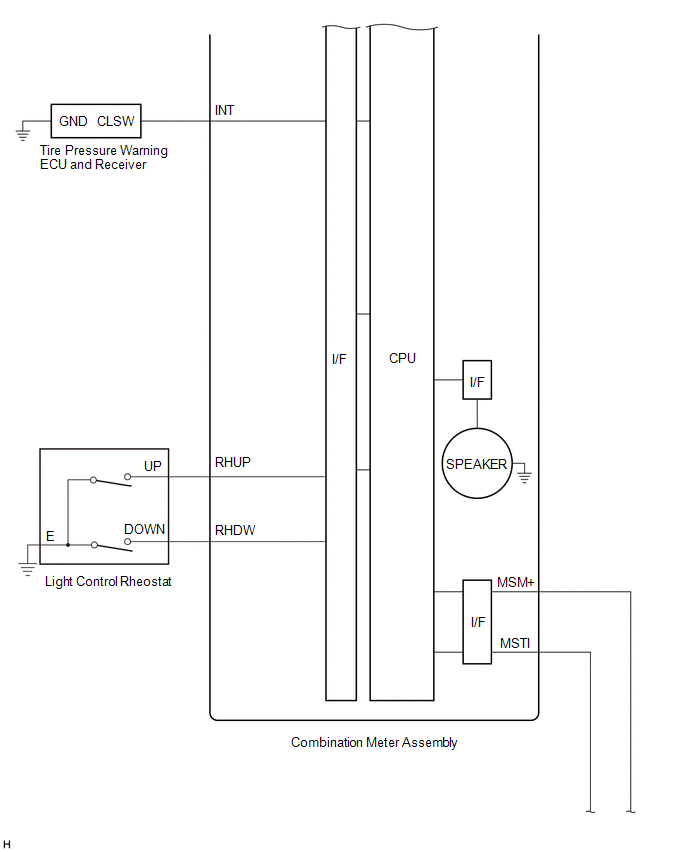

   Fig 1: Meter / Gauge System Wiring Diagram - Meter Circuit [08/2021 - ] (1 Of 5)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

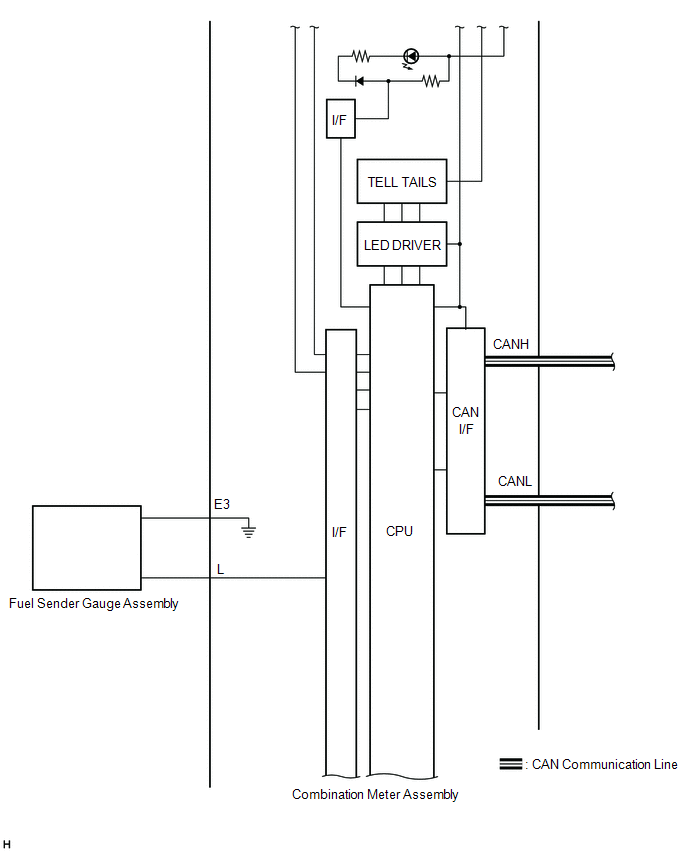

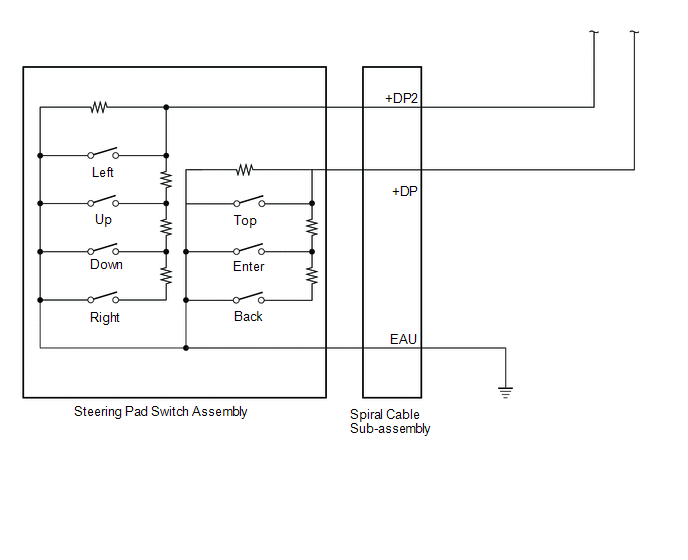

   Fig 2: Meter / Gauge System Wiring Diagram - Meter Circuit [08/2021 - ] (2 Of 5)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   Fig 3: Meter / Gauge System Wiring Diagram - Meter Circuit [08/2021 - ] (3 Of 5)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   Fig 4: Meter / Gauge System Wiring Diagram - Meter Circuit [08/2021 - ] (4 Of 5)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   Fig 5: Meter / Gauge System Wiring Diagram - Meter Circuit [08/2021 - ] (5 Of 5)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Speed Signal Circuit

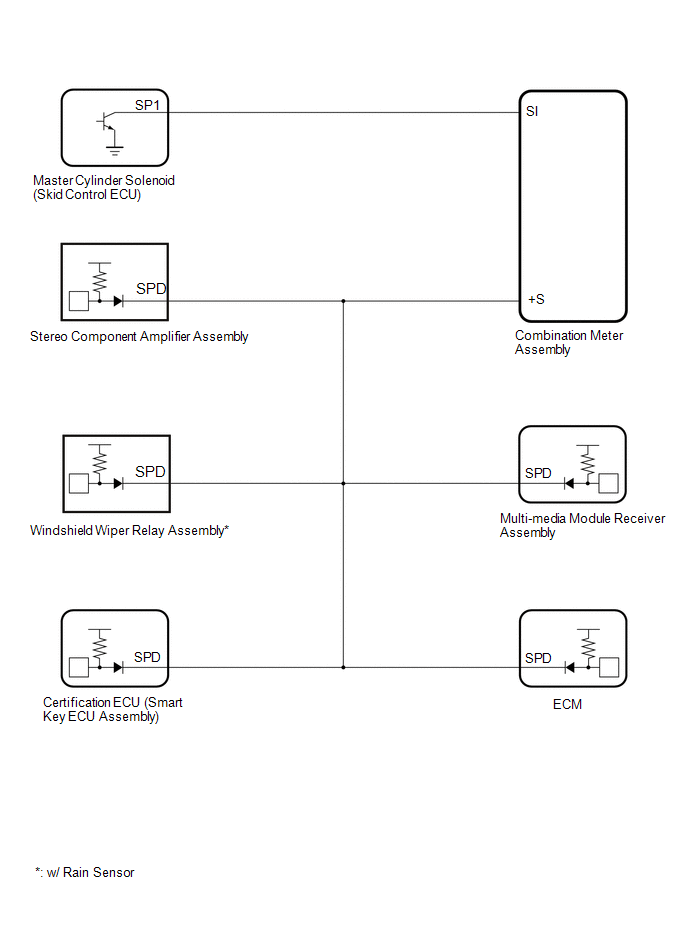

   Fig 6: Meter / Gauge System Wiring Diagram - Speed Signal Circuit [08/2019 - 08/2021]

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Turn Signal Light Circuit

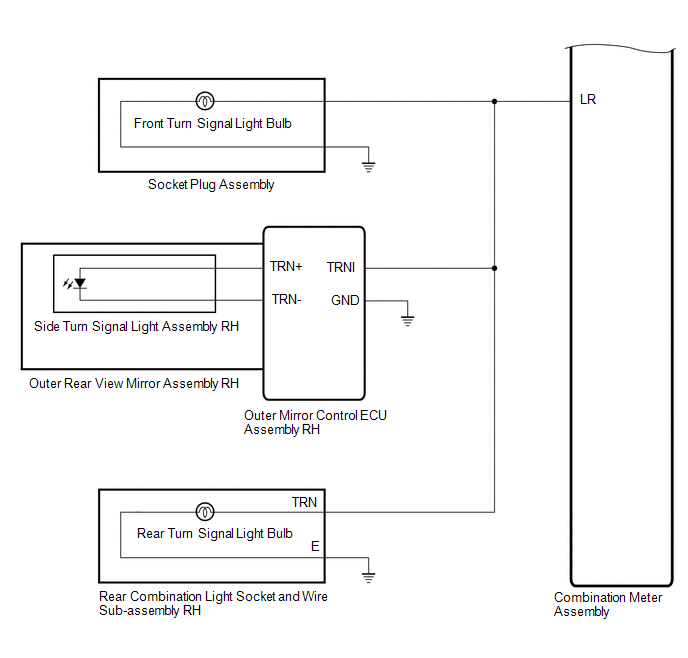

   Fig 7: Meter / Gauge System Wiring Diagram - Turn Signal Light Circuit [08/2021 - ] (1 Of 3)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

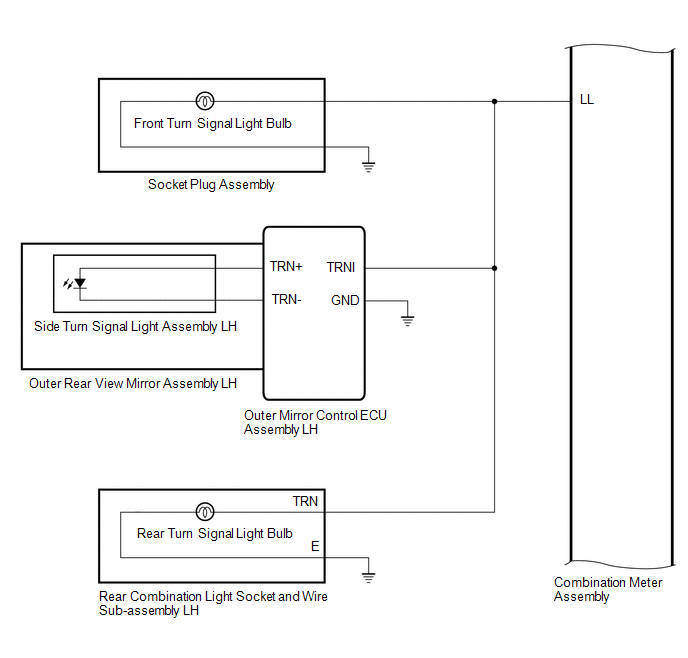

   Fig 8: Meter / Gauge System Wiring Diagram - Turn Signal Light Circuit [08/2021 - ] (2 Of 3)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

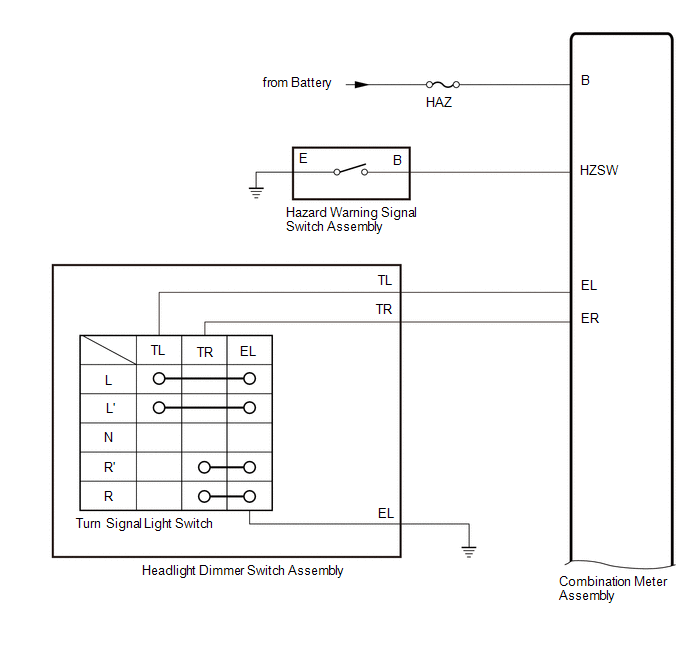

   Fig 9: Meter / Gauge System Wiring Diagram - Turn Signal Light Circuit [08/2021 - ] (3 Of 3)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Illumination Circuit

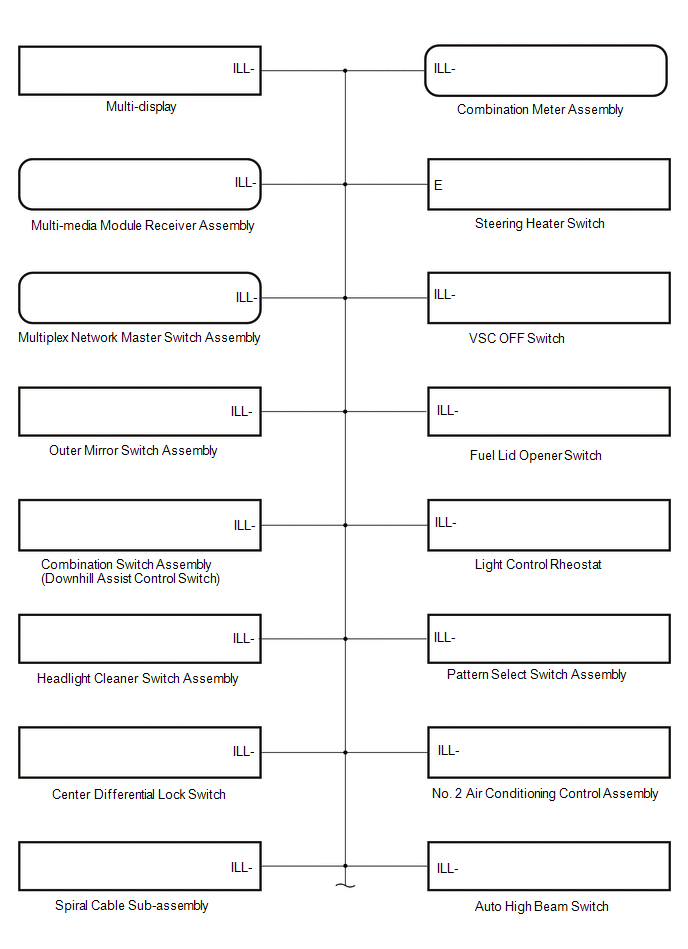

   Fig 10: Meter / Gauge System Wiring Diagram - Illumination Circuit [08/2019 - 08/2021] (1 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   Fig 11: Meter / Gauge System Wiring Diagram - Illumination Circuit [08/2021 - ] (2 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
