System Description [08/2015 - 08/2017]

METER GAUGE AND WARNING/INDICATOR

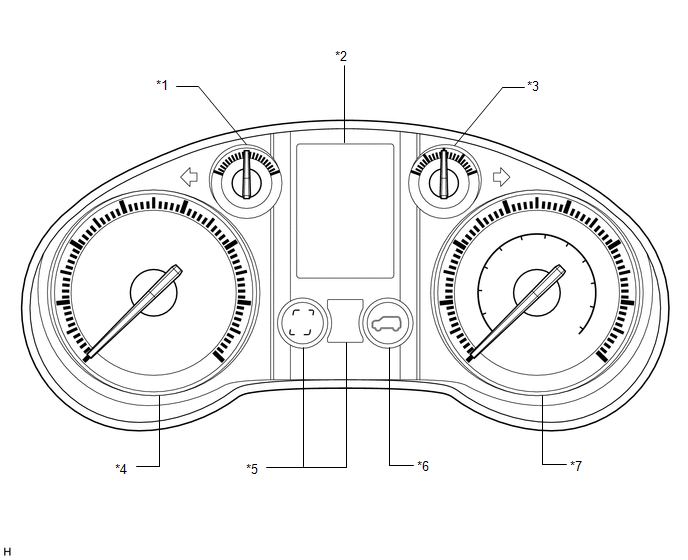

Fig 1: Meter Gauge And Warning/Indicator Components Location

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Engine Coolant Temperature Receiver Gauge	*2	Multi-information Display ODO/TRIP Eco Driving Indicator Zone Display
*3	Fuel Receiver Gauge	*4	Tachometer
*5	Shift Indicator	*6	Air Suspension Indicator* Rear Hatch Indicator
*7	Speedometer	-	-

*: w/ Air Suspension System

METER/GAUGE

Item	Details
Speedometer	Based on a signal received from the wheel speed sensors, the skid control ECU calculates the vehicle speed and transmits data to the combination meter (CAN).
Tachometer	The combination meter receives an engine speed signal from the ECM and the gauge needle operates (CAN).
Engine coolant temperature receiver gauge	The combination meter receives an engine coolant temperature signal from the ECM and the gauge needle operates (CAN).
Fuel receiver gauge	The combination meter receives fuel amount information measured by the fuel sender gauge and the gauge needle operates (Direct line).

WARNING/INDICATOR

Item	Details
Turn signal indicator light (LH/RH) Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Receives a turn signal from the flasher relay (Direct line).
CHARGE warning light Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Receives malfunction signals from the generator (Direct line).
DOOR warning light Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	The open door indicator comes on when a signal is received from the main body ECU (CAN).
Multi-terrain select indicator light*1 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Receives multi-terrain select signals from the driving support switch control ECU (CAN).
Crawl indicator light*2 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Receives crawl signals from the skid control ECU (CAN).
LDA indicator light*3 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Receives lane departure alert indicator signals from the driving support ECU (CAN).
Kinetic dynamic suspension system indicator light*14 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Receives kinetic dynamic suspension system signals from the stabilizer control ECU (CAN).
2nd START indicator light Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Receives a 2nd START switch on signal from the ECM (CAN).
PCS indicator light*4 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Receives a PCS indicator light signal from the seat belt control ECU (CAN).
ABS warning light*5 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Receives malfunction signals from the skid control ECU (CAN).
ABS warning light*6 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Receives malfunction signals from the skid control ECU (CAN).
Brake warning light*5 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Comes on when the parking brake switch is on (CAN). Comes on when the brake fluid level warning switch is on (CAN). Comes on when the vehicle stability control system is malfunctioning.
Brake warning light*6 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Comes on when the parking brake switch is on (CAN). Comes on when the brake fluid level warning switch is on (CAN). Comes on when the vehicle stability control system is malfunctioning.
MIL*5 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Receives malfunction signals from the ECM (Direct line).
MIL*6 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Receives malfunction signals from the ECM (Direct line).
VSC OFF indicator light Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Receives VSC OFF signals from the skid control ECU (CAN).
SLIP indicator light Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Receives SLIP indicator light signals from the skid control ECU (CAN).
Downhill assist control indicator light*7 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Receives downhill assist control signals from the skid control ECU (CAN).
FRONT FOG indicator light Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	The indicator turns on when a FRONT FOG illumination command signal is received (CAN).
TAIL indicator light*5 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	The indicator turns on when a taillight illumination signal is received (CAN).
HEAD indicator light*6 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	The indicator turns on when a taillight illumination signal is received (CAN).
Automatic high beam indicator light*8 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Receives automatic high beam indicator light signals from the main body ECU (CAN).
BEAM indicator light Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Receives BEAM indicator light signals from the main body ECU (CAN).
Driver side seat belt warning light Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Receives driver seat belt signals (unfastened) from the main body ECU (CAN).
Master warning light Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Receives warning signals from sensors and ECUs (CAN).
SRS warning light Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Receives malfunction signals from the center airbag sensor (CAN).
Tire pressure warning light Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Receives a tire pressure warning light signal from the tire pressure warning ECU and receiver (Direct line).
Cruise set indicator light Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Receives a cruise control switch signal from the ECM (CAN).
Eco driving indicator light Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Receives an ecology lamp indicator signal from the ECM (CAN).
Cruise indicator Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Receives a cruise control switch signal from the ECM (CAN).
Radar cruise indicator light*9 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Receives radar cruise indicator signals from the driving support ECU (CAN).
Clearance sonar indicator light*10 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Receives clearance sonar indicator light signals from the parking assist ECU12 or clearance warning ECU13 (CAN).
FUEL warning light Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Receives signals from the fuel sender gauge indicating low or no fuel (Direct line).
4LO indicator light Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Receives 4LO indicator light signals from the four wheel drive control ECU (CAN).
Center differential lock indicator light Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Receives center differential lock signals from the four wheel drive control ECU (CAN).
BSM indicator light*11 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Receives BSM indicator light signals from the blind spot monitor sensor RH (CAN).
Headlight beam level control system warning light Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Receives headlight beam level control system warning light signals from the Headlight swivel ECU (CAN).
LED headlight warning light Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Receives LED headlight warning light signals from the main body ECU (CAN).
