Removal [08/2020 - 08/2021]: Procedure

  1. REMOVE REAR SUSPENSION MEMBER SUB-ASSEMBLY

    for 2WD: Refer to REMOVAL [06/2018 - 09/2022]

    for AWD: Refer to REMOVAL [08/2020 - 08/2021]

  2. REMOVE REAR UPPER CONTROL ARM ASSEMBLY LH (for 2WD)
    1. Remove the bolt, nut and rear upper control arm assembly LH from the rear suspension member sub-assembly.
      NOTE:

      Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

      GTY763098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE REAR UPPER CONTROL ARM ASSEMBLY RH (for 2WD)

    HINT:

    Perform the same procedure as for the LH side.

  4. REMOVE REAR UPPER CONTROL ARM ASSEMBLY LH (for AWD)
    1. Remove the bolt, nut and rear upper control arm assembly LH from the rear suspension member sub-assembly.
      NOTE:

      Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

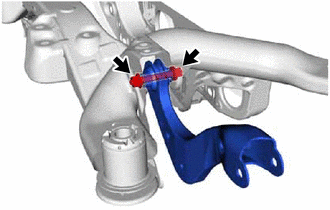

      GTY958539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE REAR UPPER CONTROL ARM ASSEMBLY RH (for AWD)

    HINT:

    Perform the same procedure as for the LH side.
