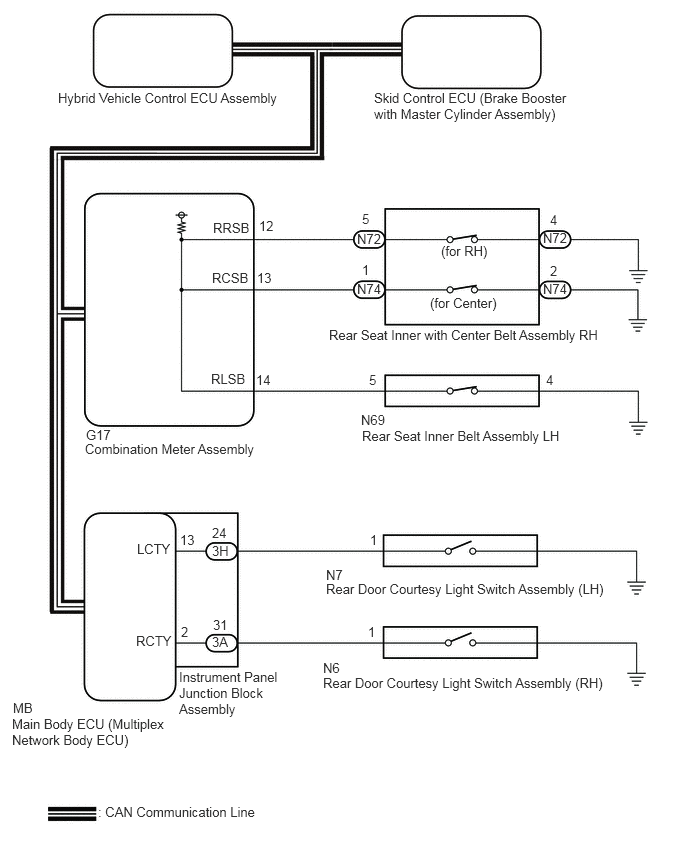

Rear Seat Belt Warning Light Malfunction [06/2018 - 07/2019]: Wiring Diagram

GTY780409

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
