Parts Location [06/2018 - 08/2020]: Illustration
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2024 Lexus ES 350, 2024 Lexus ES 250, 2023 Lexus ES 350, 2023 Lexus ES 250, and 2022 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

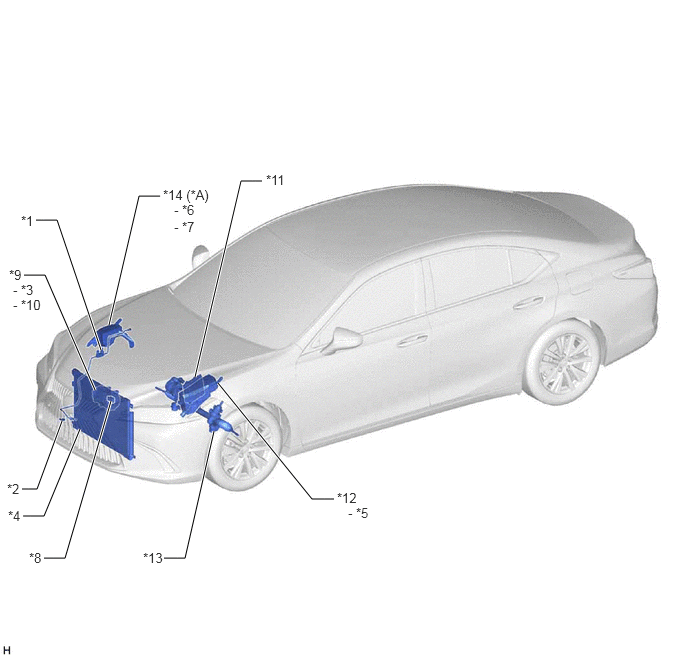

Fig 1: Air Conditioning System (For Gasoline Model) Replacement Components (1 Of 4) [06/2018 - 08/2020]
| *A | w/ Quick Heater | - | - |
| *1 | AIR CONDITIONER PRESSURE SENSOR | *2 | THERMISTOR ASSEMBLY |
| *3 | MAGNET CLUTCH ASSEMBLY | *4 | COOLER CONDENSER ASSEMBLY |
| *5 | MG CLT RELAY | *6 | PTC HTR NO. 1 RELAY |
| *7 | PTC HTR NO. 2 RELAY | *8 | SMOG VENTILATION SENSOR |
| *9 | COMPRESSOR ASSEMBLY WITH MAGNETIC CLUTCH | *10 | COOLER COMPRESSOR ASSEMBLY |
| *11 | ECM | *12 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - HTR FUSE - A/C COMP FUSE |
| *13 | POWER STEERING ECU (RACK AND PINION POWER STEERING GEAR ASSEMBLY) | *14 | NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY - PTC HTR NO. 1 FUSE - PTC HTR NO. 2 FUSE |
Fig 1: Air Conditioning System (For Gasoline Model) Replacement Components (2 Of 4) [06/2018 - 08/2020]
| *1 | ECO SWITCH ASSEMBLY (COMBINATION SWITCH ASSEMBLY) | *2 | COOLER (ROOM TEMP. SENSOR) THERMISTOR |
| *3 | AUTOMATIC LIGHT CONTROL SENSOR | *4 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *5 | COMBINATION METER ASSEMBLY | *6 | DLC3 |
| *7 | AIR CONDITIONING CONTROL ASSEMBLY | *8 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *9 | AIRBAG ECU ASSEMBLY | *10 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-B NO. 2 FUSE - ECU-IG1 NO. 3 FUSE - ECU-IG1 NO. 4 FUSE - ECU-ACC FUSE |
| *11 | DCM (TELEMATICS TRANSCEIVER) | *12 | RADIO RECEIVER ASSEMBLY |
Fig 1: Air Conditioning System (For Gasoline Model) Replacement Components (3 Of 4) [06/2018 - 08/2020]
| *A | w/ Quick Heater | - | - |
| *1 | NO. 1 COOLER THERMISTOR | *2 | QUICK HEATER ASSEMBLY |
| *3 | AIR CONDITIONING RADIATOR ASSEMBLY | *4 | BLOWER ASSEMBLY |
| *5 | BLOWER MOTOR WITH FAN SUB-ASSEMBLY | *6 | COOLER EXPANSION VALVE |
| *7 | NO. 1 COOLER EVAPORATOR SUB-ASSEMBLY | *8 | HEATER RADIATOR UNIT SUB-ASSEMBLY |
Fig 1: Air Conditioning System (For Gasoline Model) Replacement Components (4 Of 4) [06/2018 - 08/2020]
| *1 | NO. 1 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY | *2 | NO. 2 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY |
| *3 | NO. 1 BLOWER DAMPER SERVO SUB-ASSEMBLY | *4 | AIR CONDITIONING HARNESS ASSEMBLY |
