Parts Location [09/2022 - ]: Illustration
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2024 Lexus ES 350, 2024 Lexus ES 250, 2023 Lexus ES 350, 2023 Lexus ES 250, and 2022 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.
| *1 | PARK/NEUTRAL POSITION SWITCH ASSEMBLY | *2 | ST RELAY |
| *3 | STARTER ASSEMBLY | *4 | ECM |
| *5 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - IG2 NO. 1 RELAY - ECU-IG2 NO. 2 FUSE - ST NO. 1 FUSE |
- | - |

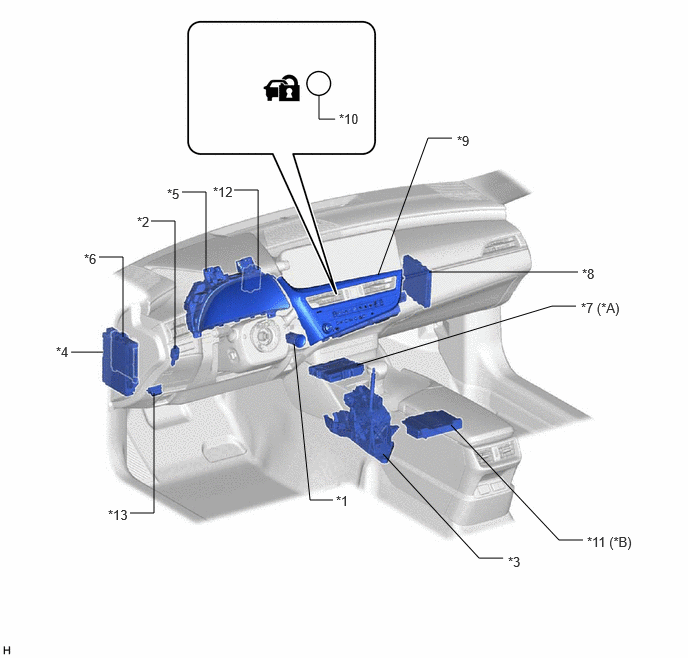

| *1 | NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (FRONT FLOOR) | *2 | NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (REAR FLOOR) |
| *A | for Lexus Enform Remote Compatible Type | *B | w/ Wireless Charging System |
| *1 | ENGINE SWITCH | *2 | STOP LIGHT SWITCH ASSEMBLY |
| *3 | SHIFT LOCK CONTROL UNIT ASSEMBLY | *4 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - AM2 FUSE - ECU-DCC NO. 2 FUSE - ECU-B NO. 1 FUSE - STOP FUSE - ACC RELAY - IG1-NO. 1 RELAY - IG1-NO. 2 RELAY - IG2-NO. 2 RELAY - ECU-ACC FUSE - ECU-IG1 NO. 4 FUSE - WASHER FUSE - ECU-IG2 NO. 3 FUSE |
| *5 | COMBINATION METER ASSEMBLY | *6 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *7 | DCM (TELEMATICS TRANSCEIVER) | *8 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *9 | AIR CONDITIONING CONTROL ASSEMBLY | *10 | SECURITY INDICATOR LIGHT |
| *11 | MOBILE WIRELESS CHARGER CRADLE ASSEMBLY | *12 | ID CODE BOX (IMMOBILISER CODE ECU) |
| *13 | DLC3 | - | - |
