Parts Location [06/2018 - 08/2021]: Illustration

WARNING: This page is about a different car, the 2021 Lexus ES 350, 2021 Lexus ES 250, 2020 Lexus ES 350, and 2019 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

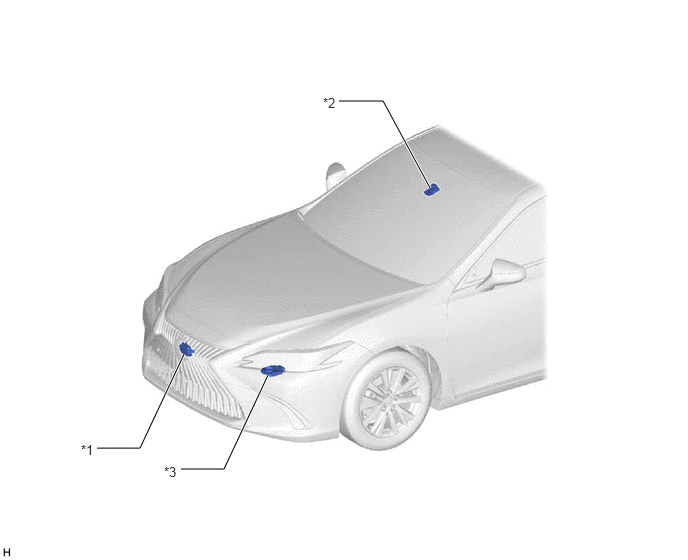

GTY810213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 MILLIMETER WAVE RADAR SENSOR ASSEMBLY *2 FORWARD RECOGNITION CAMERA
*3 HEADLIGHT ECU SUB-ASSEMBLY LH - -

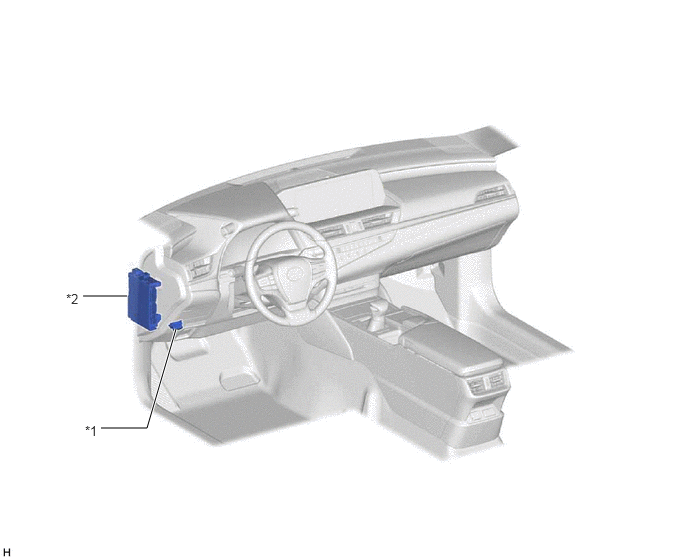

GTY826585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 DLC3 *2 INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- ECU-IG1 NO. 3 FUSE
