Parts Location [06/2018 - 08/2021]: Illustration

WARNING: This page is about a different car, the 2021 Lexus ES 350, 2021 Lexus ES 250, 2020 Lexus ES 350, and 2019 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

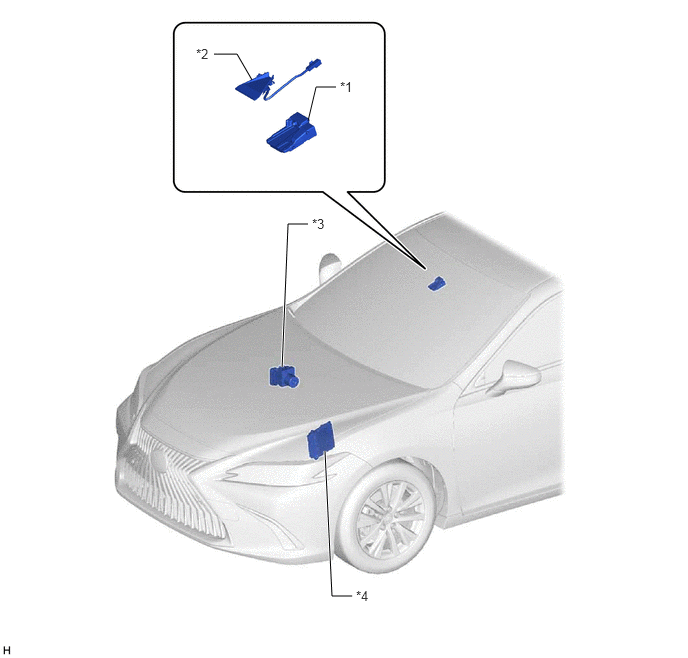

GTY816187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FORWARD RECOGNITION CAMERA *2 FORWARD RECOGNITION WITH HEATER HOOD SUB-ASSEMBLY
*3 BRAKE ACTUATOR ASSEMBLY
- SKID CONTROL ECU		 *4 ECM

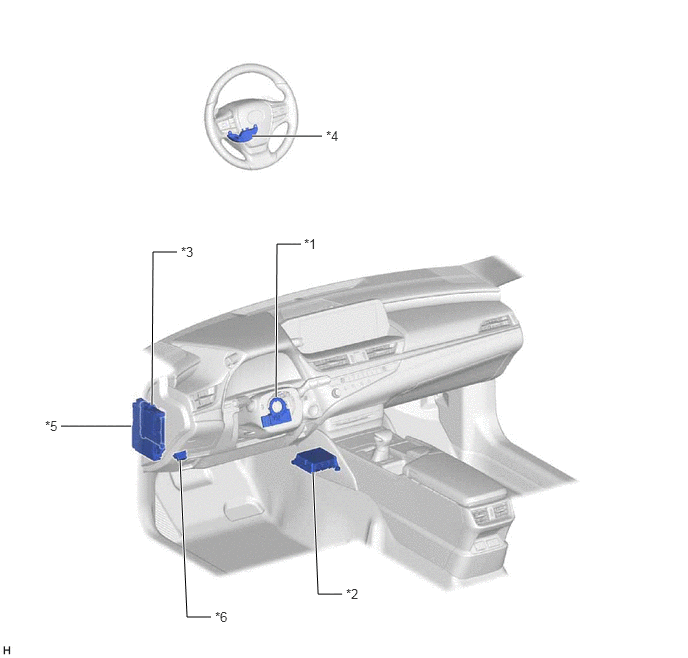

GTY796792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 STEERING SENSOR *2 AIRBAG ECU ASSEMBLY
- YAW RATE SENSOR
*3 MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) *4 STEERING VIBRATION ECU
*5 INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- ECU-IG1 NO. 3 FUSE		 *6 DLC3
