Distance Control Switch Circuit [08/2021 - ]: Procedure
- READ VALUE USING TECHSTREAM
- Read the Data List according to the display on the Techstream.
Powertrain > Radar Cruise2 > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note Vehicle-to-vehicle Distance Control Switch Vehicle-to-vehicle distance control switch signal ON or OFF ON: Vehicle-to-vehicle distance control switch pushed
OFF: Vehicle-to-vehicle distance control switch not pushed- Powertrain > Radar Cruise2 > Data List
Tester Display Vehicle-to-vehicle Distance Control Switch OK
The value of the Data List item changes according to the operation of the vehicle-to-vehicle distance control switch.
Result
Proceed to OK NG
Result:
OK
PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to PROBLEM SYMPTOMS TABLE [08/2021 - ]
Result:
NG
See step 2
- Read the Data List according to the display on the Techstream.
- INSPECT STEERING PAD SWITCH ASSEMBLY
Refer to INSPECTION [06/2018 - ]
Result
Proceed to OK NG Result:
NG
REPLACE STEERING PAD SWITCH ASSEMBLY. Refer to REMOVAL [08/2021 - 09/2022] , or refer to REMOVAL [09/2022 - ]
Result:
OK
See step 3
- INSPECT SPIRAL CABLE SUB-ASSEMBLY
Refer to INSPECTION [06/2018 - ]
Result
Proceed to OK NG Result:
NG
REPLACE SPIRAL CABLE SUB-ASSEMBLY. Refer to REMOVAL [08/2021 - 09/2022] , or refer to REMOVAL [09/2022 - ]
Result:
OK
See step 4
- CHECK HARNESS AND CONNECTOR (SPIRAL CABLE SUB-ASSEMBLY - FORWARD RECOGNITION CAMERA, ECM AND BODY GROUND)
- Disconnect the P5 forward recognition camera connector.
- For A25A-FKS
Disconnect the A28 ECM connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance (for A25A-FKS)
Tester Connection Condition Specified Condition G20-6 (DIST) - P5-3 (LKSW) Always Below 1 Ω G20-2 (ECC) - A28-28 (ECCS) Always Below 1 Ω G20-6 (DIST) or P5-3 (LKSW) - Body ground Always 10 kΩ or higher G20-2 (ECC) or A28-28 (ECCS) - Body ground Always 10 kΩ or higher Standard Resistance (for 2GR-FKS)
Tester Connection Condition Specified Condition G20-6 (DIST) - P5-3 (LKSW) Always Below 1 Ω G20-2 (ECC) - Body ground Always Below 1 Ω G20-6 (DIST) or P5-3 (LKSW) - Body ground Always 10 kΩ or higher Result
Result Proceed to OK (for A25A-FKS) A OK (for 2GR-FKS) B NG C
Result:
B
REPLACE FORWARD RECOGNITION CAMERA. Refer to REMOVAL [08/2021 - ]
Result:
C
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
A
See step 5
- CHECK HARNESS AND CONNECTOR (ECM - BODY GROUND)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition A28-10 (E1) - Body ground Always Below 1 Ω Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 6
- Measure the resistance according to the value(s) in the table below.
- CHECK ECM (ECM TERMINALS)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

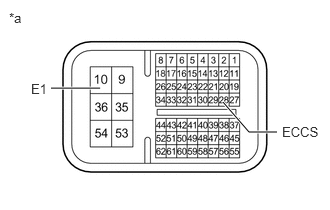

Tester Connection Condition Specified Condition 28 (ECCS) - 10 (E1) Always Below 1 Ω *a Component without harness connected
(ECM)Result
Proceed to OK NG
Result:
OK
REPLACE FORWARD RECOGNITION CAMERA. Refer to REMOVAL [08/2021 - ]
Result:
NG
REPLACE ECM. Refer to REMOVAL [08/2021 - 09/2022] , or refer to REMOVAL [09/2022 - ]
- Measure the resistance according to the value(s) in the table below.
