Distance Control Switch Circuit [08/2020 - 08/2021]: Wiring Diagram

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2024 Lexus ES 350, 2024 Lexus ES 250, 2023 Lexus ES 350, 2023 Lexus ES 250, and 2022 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. For 2GR-FKS
    Fig 1: For 2GR-FKS [08/2020 - 08/2021]
    GTY827834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. For A25A-FKS

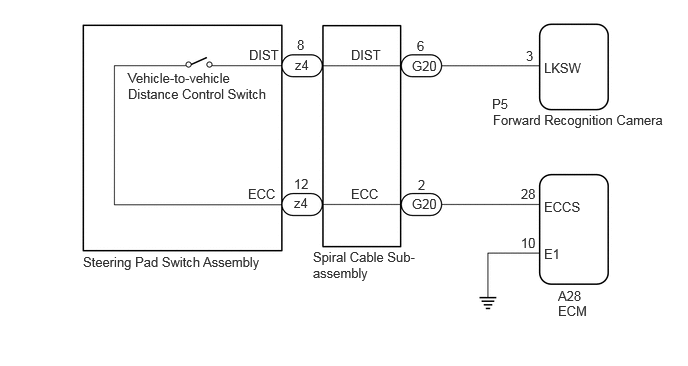

    Fig 2: For A25A-FKS [08/2020 - 08/2021]
    GTY947776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
