System Diagram [09/2022 - ]

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2024 Lexus ES 350, 2024 Lexus ES 250, 2023 Lexus ES 350, 2023 Lexus ES 250, and 2022 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. DOOR BUS LINES

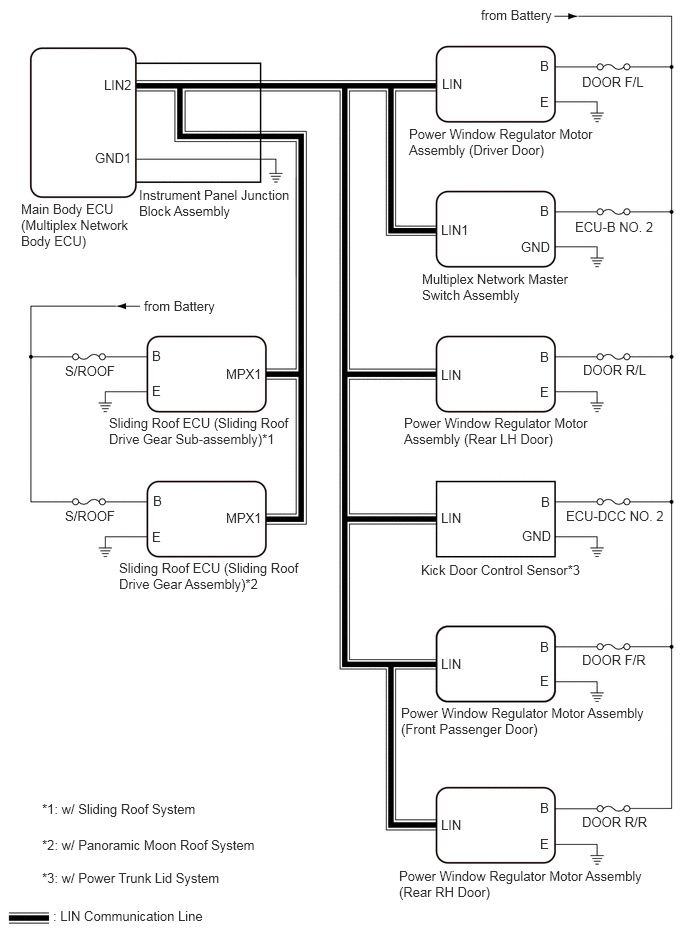

    Fig 1: Door BUS Lines Wiring Diagram
    GTY787832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. CERTIFICATION BUS LINES
    Fig 2: Certification Bus Lines Wiring Diagram
    GTY1133876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
