System Diagram [06/2018 - ]

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2024 Lexus ES 350, 2024 Lexus ES 250, 2023 Lexus ES 350, 2023 Lexus ES 250, and 2022 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. WIRELESS DOOR LOCK CONTROL SYSTEM

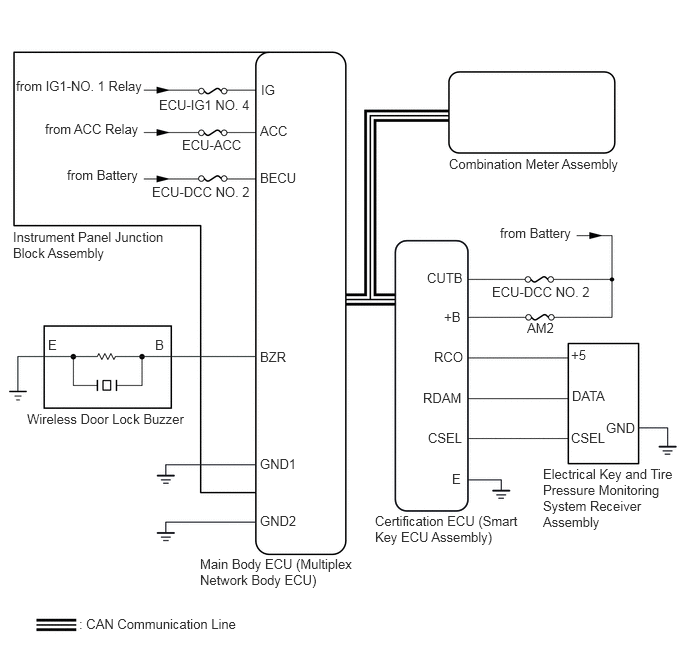

    Fig 1: Wireless Door Lock Control System Wiring Diagram
    GTY804842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. POWER DOOR LOCK CONTROL SYSTEM

    Refer to SYSTEM DIAGRAM [06/2018 - ]
