Parts Location [06/2018 - ]: Illustration

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2024 Lexus ES 350, 2024 Lexus ES 250, 2023 Lexus ES 350, 2023 Lexus ES 250, and 2022 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

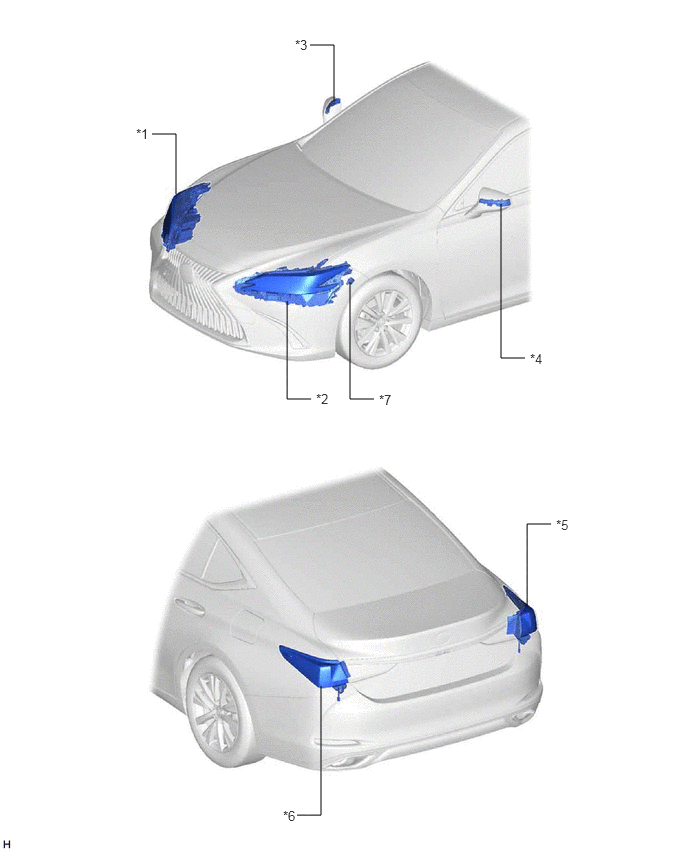

Fig 1: Wireless Door Lock Control System Component Location (Except Hybrid) (1 of 3) [06/2018 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	HEADLIGHT ASSEMBLY RH - TURN SIGNAL LIGHT	*2	HEADLIGHT ASSEMBLY LH - TURN SIGNAL LIGHT
*3	SIDE TURN SIGNAL LIGHT ASSEMBLY RH	*4	SIDE TURN SIGNAL LIGHT ASSEMBLY LH
*5	REAR COMBINATION LIGHT ASSEMBLY RH - TURN SIGNAL LIGHT	*6	REAR COMBINATION LIGHT ASSEMBLY LH - TURN SIGNAL LIGHT
*7	WIRELESS DOOR LOCK BUZZER	-	-

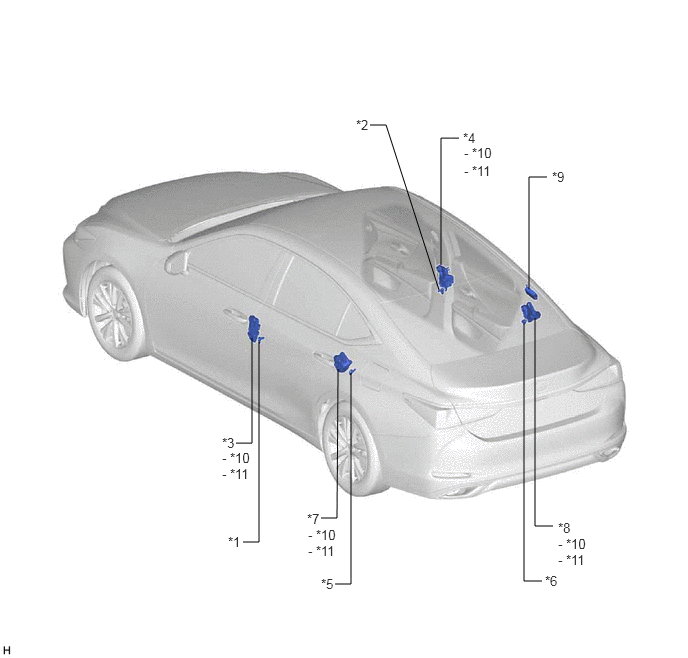

Fig 1: Wireless Door Lock Control System Component Location (Except Hybrid) (2 of 3) [06/2018 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH)	*2	FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH)
*3	FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH	*4	FRONT DOOR LOCK WITH MOTOR ASSEMBLY RH
*5	REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH)	*6	REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH)
*7	REAR DOOR LOCK WITH MOTOR ASSEMBLY LH	*8	REAR DOOR LOCK WITH MOTOR ASSEMBLY RH
*9	ELECTRICAL KEY AND TIRE PRESSURE MONITORING SYSTEM RECEIVER ASSEMBLY	*10	DOOR LOCK MOTOR
*11	DOOR UNLOCK DETECTION SWITCH	-	-

Fig 1: Wireless Door Lock Control System Component Location (Except Hybrid) (3 of 3) [06/2018 - ]

*1	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	*2	COMBINATION METER ASSEMBLY
*3	DLC3	*4	CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
*5	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - AM2 FUSE - ECU-DCC NO. 2 FUSE - ECU-ACC FUSE - ECU-IG1 NO. 4 FUSE	-	-
