System Diagram [06/2018 - 07/2019]

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2024 Lexus ES 350, 2024 Lexus ES 250, 2023 Lexus ES 350, 2023 Lexus ES 250, and 2022 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

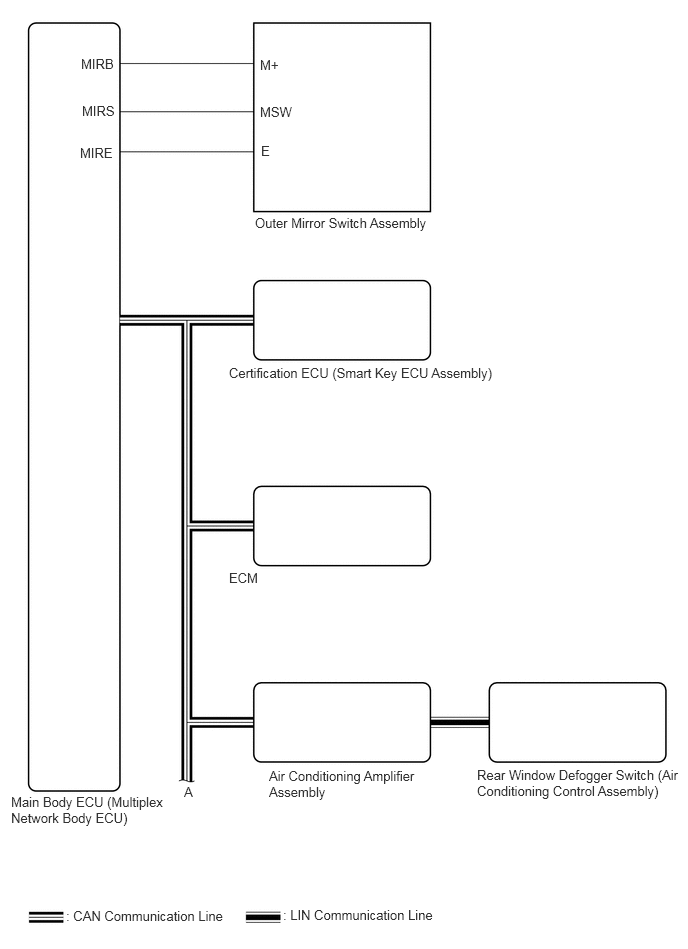

Fig 1: Power Mirror Control (With Memory) Wiring Diagram (1 Of 3)
GTY780454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

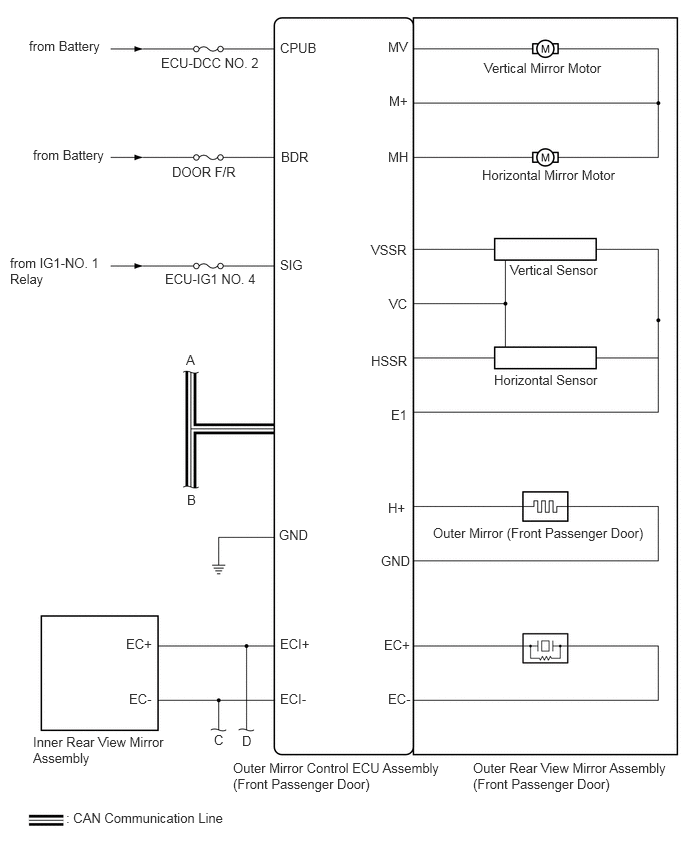

Fig 2: Power Mirror Control (With Memory) Wiring Diagram (2 Of 3)
GTY830000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

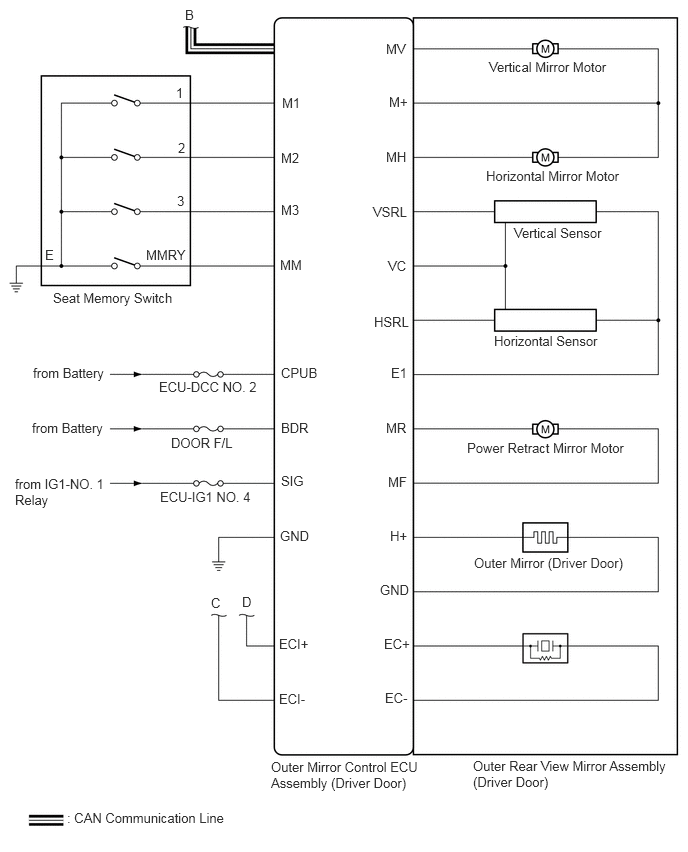

Fig 3: Power Mirror Control (With Memory) Wiring Diagram (3 Of 3)
GTY820266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Sender Receiver Signal Line
Main Body ECU (Multiplex Network Body ECU) Outer Mirror Control ECU Assembly
  • IG signal
  • ACC signal
  • Outer mirror switch assembly signal
  • Mirror position request signal (memory and reactivation function)
  • Mirror position request signal (reverse shift-linked function)
 CAN
Outer Mirror Control ECU Assembly Main Body ECU (Multiplex Network Body ECU)
  • Outer mirror state signal
  • Seat memory switch signal
 CAN
Certification ECU (Smart Key ECU Assembly) Main Body ECU (Multiplex Network Body ECU) Key ID signal CAN
Air Conditioning Amplifier Assembly Outer Mirror Control ECU Assembly Mirror heater drive request signal CAN
ECM Main Body ECU (Multiplex Network Body ECU) Reverse signal CAN
Rear Window Defogger switch (Air Conditioning Control Assembly) Air Conditioning Amplifier Assembly Mirror heater switch (rear window defogger switch) operation signal LIN
