Parts Location [06/2018 - 07/2019]: Illustration
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2024 Lexus ES 350, 2024 Lexus ES 250, 2023 Lexus ES 350, 2023 Lexus ES 250, and 2022 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.
| *1 | OUTER REAR VIEW MIRROR ASSEMBLY (DRIVER DOOR) | *2 | OUTER REAR VIEW MIRROR ASSEMBLY (FRONT PASSENGER DOOR) |
| *3 | OUTER MIRROR (DRIVER DOOR) | *4 | OUTER MIRROR (FRONT PASSENGER DOOR) |
| *5 | INNER REAR VIEW MIRROR ASSEMBLY | *6 | OUTER MIRROR CONTROL ECU ASSEMBLY (DRIVER DOOR) |
| *7 | OUTER MIRROR CONTROL ECU ASSEMBLY (FRONT PASSENGER DOOR) | *8 | ECM |

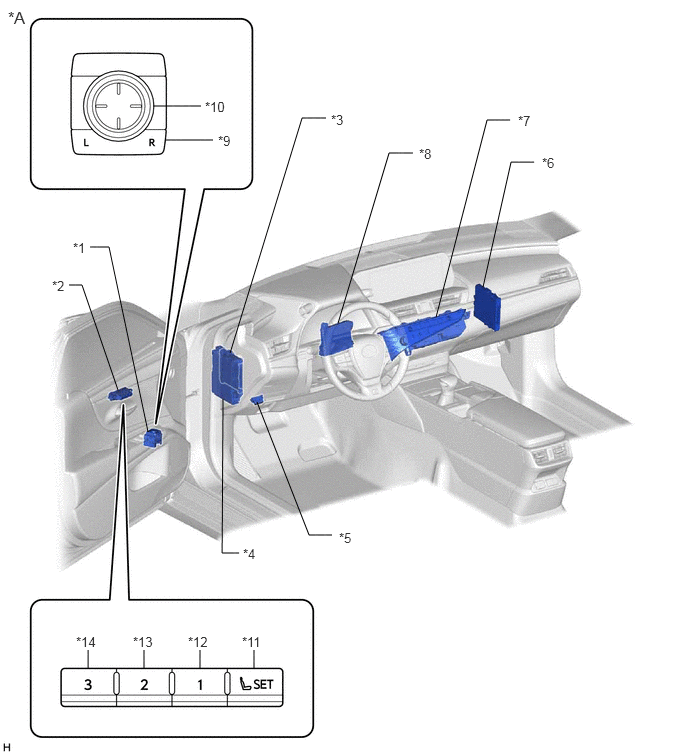

| *1 | OUTER MIRROR SWITCH ASSEMBLY | *2 | SEAT MEMORY SWITCH |
| *3 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *4 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - DOOR F/R FUSE - DOOR F/L FUSE - ECU-IG1 NO. 4 FUSE - ECU-DCC NO. 2 FUSE |
| *5 | DLC3 | *6 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *7 | REAR WINDOW DEFOGGER SWITCH (AIR CONDITIONING CONTROL ASSEMBLY) | *8 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *9 | MIRROR SELECT SWITCH | *10 | MIRROR ADJUST SWITCH |
| *11 | SET SWITCH | *12 | M1 SWITCH |
| *13 | M2 SWITCH | *14 | M3 SWITCH |
