Removal [08/2021 - 09/2022]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 350, 2023 Lexus ES 350, 2022 Lexus ES 350, 2021 Lexus ES 350, and 2020 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

  2. DISCHARGE FUEL SYSTEM PRESSURE

    Refer to PRECAUTION [06/2018 - ]

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 1

  4. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

    Refer to REMOVAL [06/2018 - ]

  5. REMOVE FRONT CENTER UPPER SUSPENSION BRACE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6

  6. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY

    Refer to REMOVAL [06/2018 - ]

  7. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 19

  8. DISCONNECT VENTILATION HOSE
    1. Slide the clip and disconnect the ventilation hose from the intake air surge tank assembly.
      GTY774175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. DISCONNECT PURGE VALVE (PURGE VSV)
    1. Disconnect the No. 1 fuel vapor feed hose from the intake air surge tank assembly.
      GTY766207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and disconnect the purge valve (purge VSV) from the intake air surge tank assembly.
  10. REMOVE NO. 2 SURGE TANK STAY
    1. Remove the 2 bolts and No. 2 surge tank stay from the intake air surge tank assembly and camshaft housing RH.
      GTY766206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE INTAKE AIR SURGE TANK ASSEMBLY
    1. Disconnect the vacuum switching valve (for ACIS) connector.
      GTY766205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the vacuum hose sub-assembly from the vacuum switching valve (for ACIS).
    3. Disengage the 2 clamps to disconnect the vacuum hose sub-assembly from the intake air surge tank assembly.
    4. Disengage the 2 clamps to disconnect the vacuum hose sub-assembly from the intake air surge tank assembly.
      GTY771359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Vacuum Hose Sub-assembly
      *2 Vacuum Hose
      *3 No. 2 Air Tube
    5. Disengage the clamp to disconnect the vacuum hose from the intake air surge tank assembly.
    6. Disengage the clamp to disconnect the No. 2 air tube from the intake air surge tank assembly.
    7. Remove the 5 bolts, 2 nuts and intake air surge tank assembly from the intake manifold.
      GTY759408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut
    8. Remove the plug from the intake air surge tank assembly.
  12. REMOVE AIR SURGE TANK TO INTAKE MANIFOLD GASKET
    1. Remove the air surge tank to intake manifold gasket from the intake air surge tank assembly.
      GTY627987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE NO. 1 V-BANK COVER BRACKET

    HINT:

    Perform this procedure only when replacement of the No. 1 V-bank cover bracket is necessary.

    1. Remove the 2 No. 1 V-bank cover brackets from the intake air surge tank assembly.
      GTY627913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE NO. 2 ENGINE MOUNTING STAY RH
    1. Remove the 2 bolts.

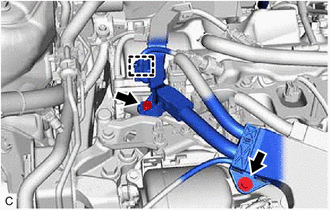

      GTY783084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the wire harness clamp and disconnect the engine wire.
    3. Remove the bolt and separate the wire harness clamp bracket from the No. 2 engine mounting stay RH.
      GTY766202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the bolt, 2 nuts and No. 2 engine mounting stay RH from the engine mounting insulator sub-assembly RH.
      GTY762483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut
    5. Remove the bolt and No. 2 engine mounting stay RH from the intake manifold and front No. 1 engine mounting bracket LH.
      GTY766201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. DISCONNECT FUEL TUBE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5

  16. REMOVE FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY

    Refer to PROCEDURE - Step 6

  17. REMOVE NO. 1 DELIVERY PIPE SPACER

    Refer to PROCEDURE - Step 7

  18. REMOVE INJECTOR VIBRATION INSULATOR

    Refer to PROCEDURE - Step 8

  19. REMOVE INTAKE MANIFOLD
    1. Remove the 4 bolts, 4 nuts and intake manifold from the cylinder head sub-assembly.
      GTY767916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut
  20. REMOVE NO. 1 INTAKE MANIFOLD TO HEAD GASKET
    1. Remove the 2 No. 1 intake manifold to head gaskets from each cylinder head sub-assembly.
      GTY766199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE STUD BOLT

    HINT:

    If a stud bolt is deformed or the threads are damaged, replace it.

    1. Using an E8 "TORX" socket wrench, remove the 2 stud bolts from the intake manifold.
      GTY627992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
